N Channel Mos Field Effect Transistor , High Power Transistor -30V/-80A

N Channel Mos Field Effect Transistor , High Power Transistor -30V/-80A

n channel mosfet transistor

high voltage transistor

Place of Origin:

ShenZhen China

Brand Name:

Hua Xuan Yang

Certification:

RoHS、SGS

Contact Us

Request A Quote
Product Details

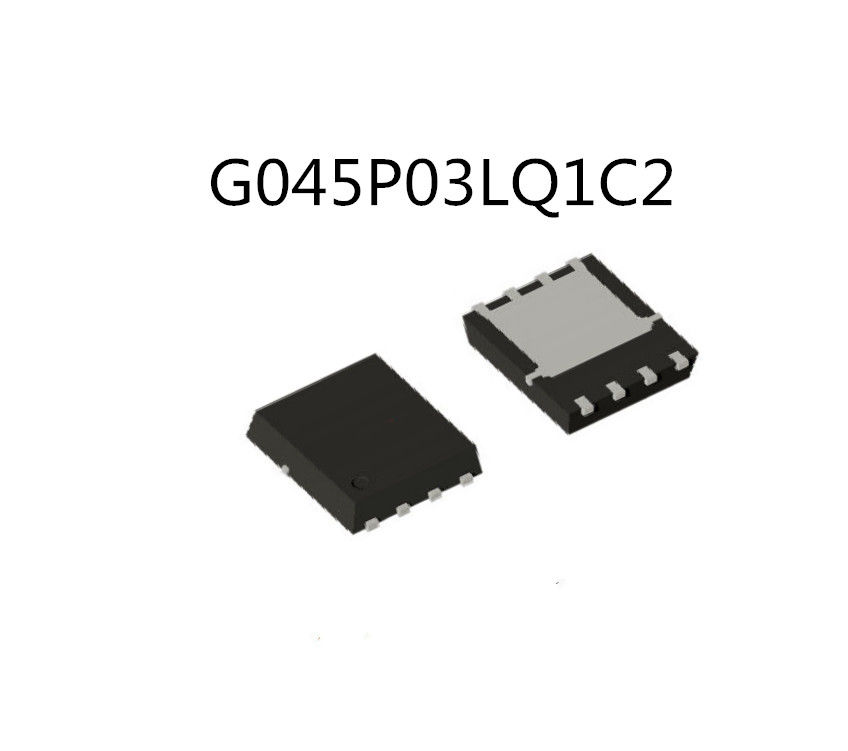

Model Number:
G045P03LQ1C2
Product Name:
N Channel Mos Field Effect Transistor
Power:
-30V/-80A
R DS(ON) = 3.8 MΩ (typ.):
@V GS = -10V
R DS(ON) = 6.2 MΩ (typ.):
@V GS = -4.5V
Application:
Switching
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiated
Packaging Details
Boxed
Delivery Time
1 - 2 Weeks
Payment Terms
L/C T/T Western Union
Supply Ability
18,000,000PCS / Per Day
RELATED PRODUCTS
Contact Us
Product Description

N Channel Mos Field Effect Transistor ,High Power Transistor -30V/-80A



N Channel Mos Field Effect Transistor Description



-30V/-80A
R DS(ON) = 3.8 mΩ (typ.) @V GS = -10V
R DS(ON) = 6.2 mΩ (typ.) @V GS = -4.5V
100% Avalanche Tested
Reliable and Rugged
Halogen- Free Devices Available



N Channel Mos Field Effect Transistor Applications



Switching Application
Power Management for DC/DC
Battery Protection



Ordering and Marking Information



C2
G045P03
XYMXXXXXX



Package Code
C2: PPAK5*6-8L
Date Code
XYMXXXXXX



Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate Termi-
Nation finish;which are fully compliant with RoHS. HUAYI lead-free products meet or exceed the lead-Free require-
ments of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines
“Green” to mean lead-free (RoHS compliant) and halogen free (Br or Cl does not exceed 900ppm by weight in
homogeneous material and total of Br and Cl does not exceed 1500ppm by weight).
HUAYI reserves the right to make changes, corrections, enhancements, modifications, and improvements to this pr-
oduct and/or to this document at any time without notice.



Absolute Maximum Ratings

N Channel Mos Field Effect Transistor , High Power Transistor -30V/-80A 0



Typical Operating Characteristics





N Channel Mos Field Effect Transistor , High Power Transistor -30V/-80A 1
