Multi Functional Mosfet Power Transistor Halogen - Free Devices Available

Multi Functional Mosfet Power Transistor Halogen - Free Devices Available

n channel mosfet transistor

high voltage transistor

Place of Origin:

ShenZhen China

Brand Name:

Hua Xuan Yang

Certification:

RoHS、SGS

Model Number:

G080NH03LA1C1

Contact Us

Request A Quote
Product Details
Product Name:
Mosfet Power Transistor
Feature:
Multi Functional
V DS:
30V
ID (V GS = 10V):
24A
R DS(ON) (typ) @V GS = 10V:
14.3 MR
R DS(ON) (typ) @V GS = 4.5V:
18.8 MR
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiated
Packaging Details
Boxed
Delivery Time
1 - 2 Weeks
Payment Terms
L/C T/T Western Union
Supply Ability
18,000,000PCS / Per Day
RELATED PRODUCTS
Contact Us
Product Description

Multi Functional Mosfet Power Transistor Halogen - Free Devices Available



Mosfet Power Transistor Description



The Power MOSFET is a type of MOSFET. The operating principle of power MOSFET is similar to the general MOSFET. The power MOSFETS are very special to handle the high level of powers. It shows the high switching speed and by comparing with the normal MOSFET, the power MOSFET will work better. The power MOSFETs is widely used in the n-channel enhancement mode, p-channel enhancement mode, and in the nature of n-channel depletion mode. Here we have explained about the N-channel power MOSFET. The design of power MOSFET was made by using the CMOS technology and also used for development of manufacturing the integrated circuits in the 1970s.



Mosfet Power Transistor Feature



Q1 Q2
V DS 30V 30V
ID (V GS = 10V) 24A 36A
R DS(ON) (typ) @V GS = 10V 14.3 mR 7.3 mR
R DS(ON) (typ) @V GS = 4.5V 18.8 mR 10.1 mR

100% Avalanche Tested
Reliable and Rugged
Halogen- Free Devices Available



Mosfet Power Transistor Applications



Synchronous Rectifiers
Wireless Power
H-bridge Motor Drive

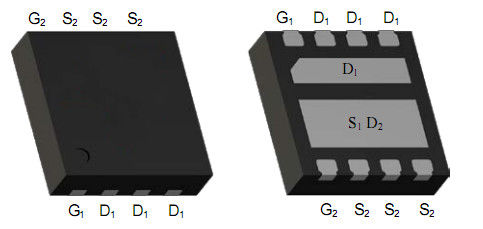

Ordering and Marking Information



C1
G080NH03
XYWXXXXXX



Package Code
C1: DFN3*3-8L
Date Code
XYWXXXXXX



Note: HUAYI lead-free products contain molding compounds/die attach materials and 100% matte tin plate Termi-
Nation finish;which are fully compliant with RoHS. HUAYI lead-free products meet or exceed the lead-Free require-
ments of IPC/JEDEC J-STD-020 for MSL classification at lead-free peak reflow temperature. HUAYI defines
“Green” to mean lead-free (RoHS compliant) and halogen free (Br or Cl does not exceed 900ppm by weight in
homogeneous material and total of Br and Cl does not exceed 1500ppm by weight).
HUAYI reserves the right to make changes, corrections, enhancements, modifications, and improvements to this pr-
oduct and/or to this document at any time without notice.



Absolute Maximum Ratings



Multi Functional Mosfet Power Transistor Halogen - Free Devices Available 0
