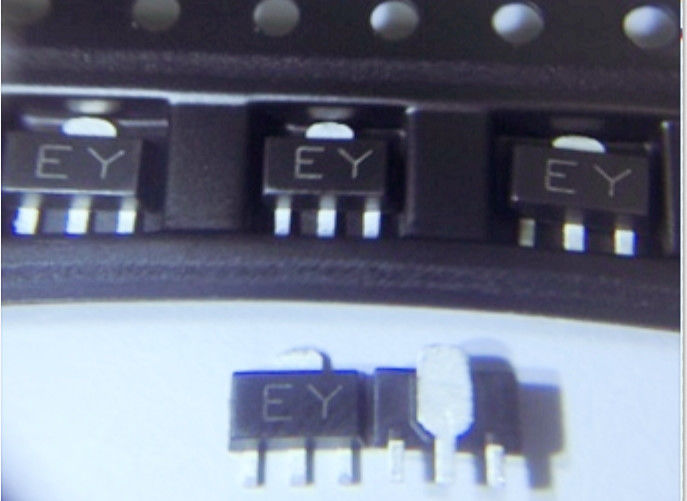

SOT-89-3L Plastic-Encapsulate Transistors A42 TRANSISTOR (NPN)





FEATURE


Low Collector-Emitter Saturation Voltage

High Breakdown Voltage



Marking :D965A







MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)


Symbol Parameter Value Unit
VCBO Collector-Base Voltage 310 V
VCEO Collector-Emitter Voltage 305 V
VEBO Emitter-Base Voltage 5 V
IC Collector Current -Continuous 200 mA
ICM Collector Current -Pulsed 500 mA
PC Collector Power Dissipation 500 mW
RθJA Thermal Resistance from Junction to Ambient 250 ℃/W
TJ Junction Temperature 150
Tstg Storage Temperature -55~+150




ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified)


Parameter Symbol Test conditions Min Typ Max Unit
Collector-base breakdown voltage V(BR)CBO IC=100µA,IE=0 310     V
Collector-emitter breakdown voltage V(BR)CEO IC=1mA,IB=0 305     V
Emitter-base breakdown voltage V(BR)EBO IE=100µA,IC=0 5     V



Collector cut-off current

ICBO VCB=200V,IE=0     0.25 µA




ICEX

VCE=100V,VX=5V     5 µA
    VCE=300V,VX=5V     10 µA
Emitter cut-off current IEBO VEB=5V,IC=0     0.1 µA



DC current gain

hFE(1) VCE=10V, IC=1mA 60
  hFE(2) VCE=10V, IC=10mA 100   300
  hFE(3) VCE=10V, IC=30mA 75
Collector-emitter saturation voltage VCE(sat) IC=20mA,IB=2mA     0.2 V
Base-emitter saturation voltage VBE(sat) IC=20mA,IB=2mA     0.9 V
Transition frequency fT VCE=20V,IC=10mA, f=30MHz 50     MHz








 Typical Characteristics



600mA Silicon Power Transistor NPN Power Transistor High Current 0

600mA Silicon Power Transistor NPN Power Transistor High Current 1

600mA Silicon Power Transistor NPN Power Transistor High Current 2







 Package Outline Dimensions


Symbol Dimensions In Millimeters Dimensions In Inches
  Min Max Min Max
A 1.400 1.600 0.055 0.063
b 0.320 0.520 0.013 0.020
b1 0.400 0.580 0.016 0.023
c 0.350 0.440 0.014 0.017
D 4.400 4.600 0.173 0.181
D1 1.550 REF. 0.061 REF.
E 2.300 2.600 0.091 0.102
E1 3.940 4.250 0.155 0.167
e 1.500 TYP. 0.060 TYP.
e1 3.000 TYP. 0.118 TYP.
L 0.900 1.200 0.035 0.047



600mA Silicon Power Transistor NPN Power Transistor High Current 3




SOT-89-3L Suggested Pad Layout



600mA Silicon Power Transistor NPN Power Transistor High Current 4


SOT-89-3L Tape and Reel
600mA Silicon Power Transistor NPN Power Transistor High Current 5
600mA Silicon Power Transistor NPN Power Transistor High Current 6
600mA Silicon Power Transistor NPN Power Transistor High Current 7
