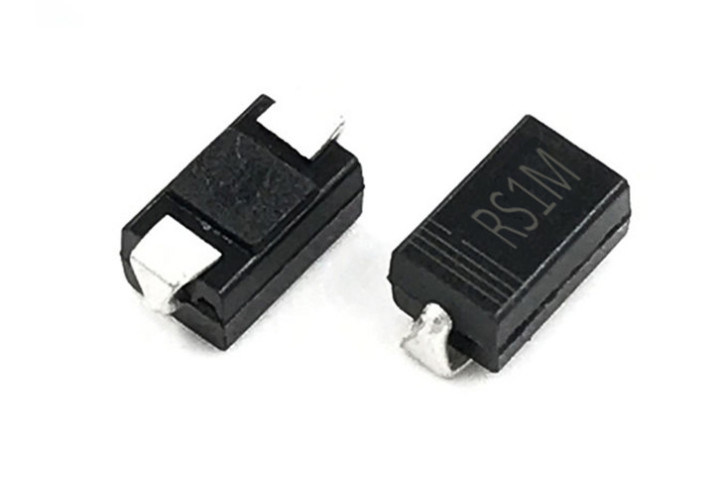

1.3Volts Dual Switching Diode High Temperature Soldering Guaranteed

1.3Volts Dual Switching Diode High Temperature Soldering Guaranteed

1.3Volts Dual Switching Diode

Dual Switching Diode High Temperature

30.0Amps Dual Switching Diode

Place of Origin:

ShenZhen China

Brand Name:

OTOMO

Certification:

RoHS、SGS

Model Number:

RS1A THRU RS1M

Contact Us

Request A Quote
Product Details
Product ID:
RS1A THRU RS1M
Weight:
0.002 Ounce, 0.07 Grams
VF:
1.3Volts
Feature:
Low Reverse Leakage
IFSM:
30.0Amps
I(AV):
1.0Amp
Payment & Shipping Terms
Minimum Order Quantity
1000-2000 PCS
Price
Negotiated
Packaging Details
Boxed
Delivery Time
1 - 2 Weeks
Payment Terms
L/C T/T Western Union
Supply Ability
18,000,000PCS / Per Day
RELATED PRODUCTS
Contact Us
Product Description

RS1A THRU RS1M SURFACE MOUNT Reverse Voltage - 50 to 1000 Volts Forward Current -1.0 Ampere







FEATURES

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
For surface mounted applications Low reverse leakage
Built-in strain relief,ideal for automated placement
High forward surge current capability
High temperature soldering guaranteed:
250 C/10 seconds at terminals
Glass passivated chip junction









MECHANICAL DATA



Case : JEDEC DO-214AC molded plastic body over passivated chip

Terminals : Solder plated, solderable per MIL-STD-750,Method 2026

Polarity : Color band denotes cathode end

Mounting Position : Any

    Weight :0.002 ounce, 0.07 grams







MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS





Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

MDD Catalog Number SYMBOLS RS1A RS1B RS1D RS1G RS1J RS1K RS1M UNITS
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 VOLTS
Maximum RMS voltage VRMS 35 70 140 280 420 560 700 VOLTS
Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 VOLTS

Maximum average forward rectified current

at TL=90 C

I(AV) 1.0 Amp

Peak forward surge current

8.3ms single half sine-wave superimposed on rated load (JEDEC Method)



IFSM



30.0



Amps

Maximum instantaneous forward voltage at 1.0A VF 1.3 Volts

Maximum DC reverse current TA=25 C

at rated DC blocking voltage TA=100 C

IR

5.0

50.0

mA
Maximum reverse recovery time (NOTE 1) trr 150 250 500 ns
Typical junction capacitance (NOTE 2) CJ 15.0 pF
Typical thermal resistance (NOTE 3) RqJA 50.0 C/W
Operating junction and storage temperature range TJ,TSTG -50 to +150 C







Note:

1. Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A

2. Measured at 1MHz and applied reverse voltage of 4.0V D.C.

3. Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted





RATINGS AND CHARACTERISTIC CURVES RS1A THRU RS1M
