MCU M4 AT32F413RBT7 PIN To PIN Alternative STM32F103RBT6 STM32F103R8T6

MCU M4 AT32F413RBT7 PIN To PIN Alternative STM32F103RBT6 STM32F103R8T6

Brand Name:

AT

Model Number:

AT32F413RBT7

Contact Us

Request A Quote
Product Details
Product Name:
AT32F413RBT7
Package:
LQFP64
Manufacturer:
AT
Core Processor:
M4
Frequency(MHz):
200
Flash(KB):
128
SRAM(KB):
32/16/64
I/O:
55
Payment & Shipping Terms
Minimum Order Quantity
900pcs
Packaging Details
Bagged
Delivery Time
5-15days
Payment Terms
T/T
Supply Ability
300000PCS/month
RELATED PRODUCTS
Contact Us
Product Description

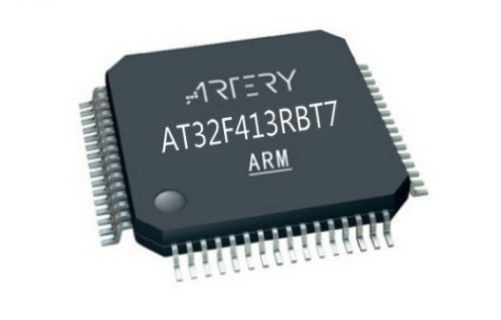

MCU M4 AT32F413RBT7 PIN To PIN Alternative STM32F103RBT6 STM32F103R8T6



1. High compatibility: compatible with STM32F103 pins & highly compatible with software
2.M4 clocked at 200MHz (with FPU/DSP), RAM up to 64KB
3. With dual CAN Bus, and USB/CAN can be used at the same time, UARTx5, 32-bit Timer...
4. Support wide operating temperature range (-40-105 degrees)




Efficacy / performance
ARM® Cortex®-M4 is the most frequent
200MHz high
Single precision floating point arithmetic unit
Memory execution zero waiting technology
2.6V ~ 3.6V supply voltage
I / OS can withstand 5V level
Temperature range-40 ~ + 105 ° C

Hot sell:

STM32F103C8T6 STM32F103ZCT6 STM32F205VGT6 STM32F302RCT6 STM32F303VCT6
STM32F103CBT6 STM32F103ZET6 STM32F205ZCT6 STM32F302RET6 STM32F303VET6
STM32F103CBU6 STM32F103ZGT6 STM32F205ZET6 STM32F302VCT6 STM32F303ZET6
STM32F103RBT6 STM32F105RBT6 STM32F205ZGT6 STM32F302VET6 STM32F401CBU6
STM32F103RCT6 STM32F105RCT6 STM32F207VCT6 STM32F303C8T6 STM32F401CCU6
STM32F103RET6 STM32F105VCT6 STM32F207VET6 STM32F303K8T6 STM32F401RBT6
STM32F103RRT6 STM32F205RCT6 STM32F207VGT6 STM32F303CBT6 STM32F401RCT6
STM32F103VCT6 STM32F205RET6 STM32F302C8T6 STM32F303CCT6 STM32F401VCT6
STM32F103VET6 STM32F205RGT6 STM32F302CBT6 STM32F303RBT6 STM32F401RET6
STM32F103VGT6 STM32F205VCT6 STM32F302CCT6 STM32F303RCT6 STM32F401VET6
STM32F030C8T6 STM32F205VET6 STM32F302RBT6 STM32F303RET6 STM32F411CCU6
STM32F072RBT6 STM32F030F4P6 STM32F107RBT6 STM32F030K6T6 STM32F030C6T6
STM32F411CEU6 STM32F405ZGT6 STM32F405VGT6 STM32F446ZET6 KA3525A
STM32F411RCT6 STM32F446RCT6 STM32F072C8T6 STM32F107RCT6 NCP1252ADR2G
STM32F411RET6 STM32F446RET6 STM32F072C8U6 STM32F107VBT6 LM358ADR
STM32F411VCT6 STM32F446VCT6 STM32F072CBT6 STM32F107VCT6 LM2904DT
STM32F411VET6 STM32F446VET6 STM32F072CBU6 STM32F407VET6 UC3843BVDR2G
STM32F405RGT6 STM32F446ZCT6 STM8S003F3P6 STM32F042C6T6 UC3842AN

Sxx Series Sxx Part Core CPU DSP/FPU Flash SRAM AT32 Series AT32 Part Core CPU DSP/FPU Flash SRAM
Sxx32F103 C8T6 M3 72MHz No/No 64K 20K AT32F413 C8T7 M4 200MHz Yes/Yes 64K 32K
Sxx32F103 CBT6 M3 72MHz No/No 128K 20K AT32F413 CBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 CBU6 M3 72MHz No/No 128K 20K AT32F413 CBU7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 RBT6 M3 72MHz No/No 128K 20K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 RCT6 M3 72MHz No/No 256K 48K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
