AT32F413C8T7 Mcu Unit STM32F302C8T6 STM32F103C8T6 Software And Hardware Fully Compatible

AT32F413C8T7 Mcu Unit STM32F302C8T6 STM32F103C8T6 Software And Hardware Fully Compatible

AT32F413C8T7 Mcu Unit

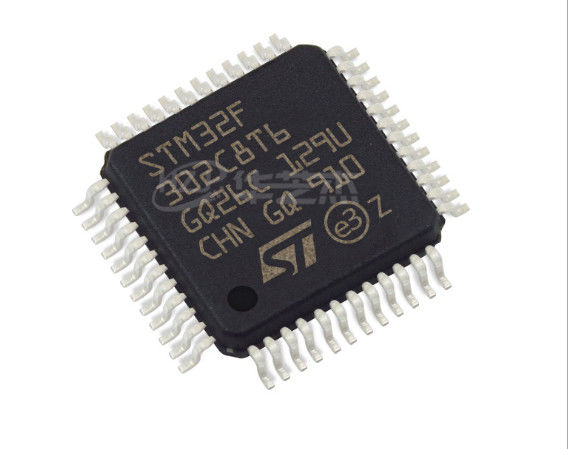

Mcu Unit STM32F302C8T6

STM32F103C8T6

Brand Name:

AT

Model Number:

AT32F413C8T7

Contact Us

Request A Quote
AT32F413C8T7 Mcu Unit STM32F302C8T6 STM32F103C8T6 Software And Hardware Fully Compatible
Product Details
Product Name:
AT32F413C8T7
Package:
LQFP-48
Manufacturer:
AT
Core Processor:
M4
Frequency(MHz):
72
Flash(KB):
64
SRAM(KB):
32
I/O:
39
Payment & Shipping Terms
Minimum Order Quantity
2500
Packaging Details
Bagged
Delivery Time
5-15days
Payment Terms
T/T
Supply Ability
19200PCS/month
RELATED PRODUCTS
Contact Us
86--15112670997
kf@maoyt.com
Contact Now
Product Description

MCU AT32F413C8T7 PIN To PIN Alternative STM32F302C8T6 STM32F103C8T6 software and hardware is fully compatible





MCU 32-Bit AT32F413C8T7 PIN To PIN Alternative STM32F302C8T6 STM32F103C8T6 software and hardware is fully compatible



AT32F403 series high performance microcontroller is equipped with a 32-bit ARM® Cortex®-M4 core, which matches the advanced process effective to increase the overall performance of 200MHz. Built-in Single Single Floating Point Computing Unit (FPU) and Digital Signal Processors (DSP), with rich peripherals and flexible clock control mechanisms to meet multiple field applications. Perfect memory design, up to 1MB Flash Memory (Flash) and 224KB Random Access Memory (SRAM), and its flash memory performs the excellent performance of zero waiting, transcending the industry's classic chip level.



AT32F403 series sets high-performance, low power and reliability, and provides a series of chip options, high integration, high integration and cost-effective first-class market competitiveness, especially applicable Design of various cost-sensitive and high-performance demands such as Industrial Automation, Motor Control, Internet (IOT) and Consumer Electronics.

Hot sell

STM32F103VET6 STM32F427ZGT6 STM32F105ZDT6 STM32F030G4U6 STM32F070F6U6
STM32F103VCT6 STM32F427ZIT6 STM32F105ZET6 STM32F030G6U6 STM32F070F8U6
STM32F103C8T6 STM32F427ZKT6 STM32F105ZFT6 STM32F030G8U6 STM32F070G4U6
STM32F103RCT6 STM32F427IGH6 STM32F105ZGT6 STM32F030G4U6 STM32F070G6U6
STM32F103RBT6 STM32F427IIH6 STM32F105ZIT6 STM32F030G6U6 STM32F070G8U6
STM32F103T4U6 STM32F427IKH6 STM32F101T4U6 STM32F030G8U6 STM32F070G4U6
STM32F103T6U6 STM32F407RET6 STM32F101T6U6 STM32F030K4U6 STM32F070G6U6
STM32F103T8U6 STM32F407RGT6 STM32F101T8U6 STM32F030K6U6 STM32F070G8U6
STM32F103TBU6 STM32F407RKT6 STM32F101TBU6 STM32F030K8U6 STM32F070K4U6
STM32F103C4T6 STM32F407VET6 STM32F101C4T6 STM32F030C4U6 STM32F070K6U6
STM32F103C6T6 STM32F407VGT6 STM32F101C6T6 STM32F030C6U6 STM32F070K8U6
STM32F103CBT6 STM32F407VKT6 STM32F101C8T6 STM32F030C8U6 STM32F070C4U6
STM32F103R4T6 STM32F407ZET6 STM32F101CBT6 STM32F030R8U6 STM32F070C6U6
STM32F103R6T6 STM32F407ZGT6 STM32F101R4T6 STM32F207RCT6 STM32F070C8U6
STM32F103R8T6 STM32F407ZKT6 STM32F101R6T6 STM32F207RET6 STM32F070R8U6
STM32F103RBT6 STM32F407VEH6 STM32F101R8T6 STM32F207RGT6 STM32F105RBT6
STM32F103RDT6 STM32F407VGH6 STM32F101RBT6 STM32F207RKT6 STM32F105RCT6
STM32F103RET6 STM32F407VKH6 STM32F101RCT6 STM32F207VCT6 STM32F105RDT6
STM32F103RFT6 STM32F407IEH6 STM32F101RDT6 STM32F207VET6 STM32F105RET6
STM32F103RGT6 STM32F407IGH6 STM32F101RET6 STM32F207VGT6 STM32F105RFT6
STM32F103RIT6 STM32F4071KH6 STM32F101RFT6 STM32F207VKT6 STM32F105RGT6
STM32F103RKT6 STM32F405RET6 STM32F101RGT6 STM32F207ZCT6 STM32F105RIT6
STM32F103V8T6 STM32F405RGT6 STM32F101RIT6 STM32F207ZET6 STM32F105RKT6
STM32F103VBT6 STM32F405RKT6 STM32F101RKT6 STM32F207ZGT6 STM32F105V8T6
STM32F103VDT6 STM32F405VGT6 STM32F101V8T6 STM32F207ZKT6 STM32F105VBT6
STM32F103VFT6 STM32F405VKT6 STM32F101VBT6 STM32F207IET6 STM32F105VCT6
STM32F103VGT6 STM32F405ZGT6 STM32F101VCT6 STM32F207IGT6 STM32F105VDT6
STM32F103VIT6 STM32F405ZKT6 STM32F101VDT6 STM32F207IKT6 STM32F105VET6
STM32F103VKT6 STM32F405VGH6 STM32F101VET6 STM32F427VET6 STM32F105VFT6
STM32F103ZCT6 STM32F405VKH6 STM32F101VFT6 STM32F427VGT6 STM32F105VGT6
STM32F103ZDT6 STM32F205VCT6 STM32F101VGT6 STM32F427VIT6 STM32F105VIT6
STM32F103ZET6 STM32F205VET6 STM32F101VIT6 STM32F427VKT6 STM32F105VKT6
STM32F103ZFT6 STM32F205VGT6 STM32F101VKT6 STM32F427ZET6 STM32F105ZCT6
STM32F103ZGT6 STM32F205VKT6 STM32F101ZCT6 STM32F205ZGT6 STM32F101ZFT6
STM32F103ZIT6 STM32F205ZCT6 STM32F101ZDT6 STM32F205ZKT6 STM32F101ZGT6
STM32F030C8T6 STM32F205ZET6 STM32F101ZET6 STM32F070F4U6 STM32F101ZIT6
STM32F030F4U6 STM32F030F6U6 STM32F030F8U6 STM8S003F3P6 STM32L151VCT6
AT32 PIN to PIN ST32 alternative compatible E-mail:jimmy@stm32ic.com
Sxx Series Sxx Part Core CPU DSP/FPU Flash SRAM AT32 Series AT32 Part Core CPU DSP/FPU Flash SRAM AT32 Series Differences and Features Description
Sxx32F103 C8T6 M3 72MHz No/No 64K 20K AT32F413 C8T7 M4 200MHz Yes/Yes 64K 32K 1. High compatibility: compatible with Sxx32F103 pins & highly compatible with software
2.M4 clocked at 200MHz (with FPU/DSP), RAM up to 64KB
3. With dual CAN Bus, and USB/CAN can be used at the same time, UARTx5, 32-bit Timer...
4.USB2.0 FS Device supports Crystal-less
5. Built-in sLib function: unique security & secondary development function
6.AT32F413 has more IO x 2, 64pin more IO x 4 than Sxx32F103 48pin
7. Support SPIM, can connect to high-speed SPI NOR Flash
8. Support wide operating temperature range (-40-105 degrees)
9. Support small size package: QFN48 6x6mm, QFN32 4x4mm
Sxx32F103 CBT6 M3 72MHz No/No 128K 20K AT32F413 CBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 CBU6 M3 72MHz No/No 128K 20K AT32F413 CBU7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 RBT6 M3 72MHz No/No 128K 20K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 RCT6 M3 72MHz No/No 256K 48K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F103 RCT6 M3 72MHz No/No 256K 48K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K 1. High compatibility: compatible with Sxx32F103 pins & highly compatible with software
2.M4 main frequency 240MHz (with FPU/DSP), RAM up to 224KB
3.AT32F403ARC/VC can replace the Sxx103RE/VE project just because of insufficient RAM
4. Rich peripherals: I2Cx3, SDIO x 2, SPI/I2S (full duplex) x 4, CANx2, UARTx8, 32-bit Timer, SPIM can be connected to high-speed SPI NOR Flash
5. Built-in sLib function: unique security & secondary development function
6. High computing power, one can replace multiple
7. Support wide operating temperature range (-40-105 degrees)
8. Support small size package: QFN48 6x6mm
Sxx32F103 RET6 M3 72MHz No/No 512K 64K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 RGT6 M3 72MHz No/No 1024K 96K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 VCT6 M3 72MHz No/No 256K 48K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F103 VET6 M3 72MHz No/No 512K 64K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 VGT6 M3 72MHz No/No 1024K 96K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 ZCT6 M3 72MHz No/No 256K 48K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K 1. High compatibility: compatible with Sxx32F103 pins & highly compatible with software
2.M4 clocked at 200MHz (with FPU/DSP), RAM up to 224KB
3. Rich peripherals: I2C x 3, SDIO x 2, SPI/I2S x 4, 32-bit Timer...
4. Support SPIM and external high-speed SPI NOR Flash
5. High computing power, one can replace multiple
Sxx32F103 ZET6 M3 72MHz No/No 512K 64K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F103 ZGT6 M3 72MHz No/No 1024K 96K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F105 RBT6 M3 72MHz No/No 128K 64K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K 1. AT32F403A does not support USB OTG
2. If the SRAM requirement is within 32KB, AT32F415 (built-in USB OTG) can be used
3. Refer to AT32F403A description on this page (8th~13th column)
Sxx32F105 RCT6 M3 72MHz No/No 256K 64K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F105 VCT6 M3 72MHz No/No 256K 64K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F205 RCT6 M3 120MHz No/No 256K 64K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K 1. AT32F403A does not support USB OTG
2. If the SRAM requirement is within 32KB, AT32F415 (built-in USB OTG) can be used
3. Refer to AT32F403A description on this page (8th~13th column)
Sxx32F205 RET6 M3 120MHz No/No 512K 96K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 RGT6 M3 120MHz No/No 1024K 128K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 VCT6 M3 120MHz No/No 256K 64K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F205 VET6 M3 120MHz No/No 512K 96K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 VGT6 M3 120MHz No/No 1024K 128K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 ZCT6 M3 120MHz No/No 256K 64K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K 1. AT32F403 does not support USB OTG
2. If the SRAM requirement is within 32KB, AT32F415 (built-in USB OTG) can be used
3. Refer to AT32F403 description on this page (14th~16th column)
Sxx32F205 ZET6 M3 120MHz No/No 512K 96K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F205 ZGT6 M3 120MHz No/No 1024K 128K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F207 VCT6 M3 120MHz No/No 256K 128K AT32F407A VCT7 M4 240MHz Yes/Yes 256K 96/224K 1. CPU up to 240MHz
2. SRAM setting is bigger and more flexible 96/224KB
3. Support SPIx4, full duplex I2Sx2, UARTx8, SDIOx2
4. Built-in sLib function: unique security & secondary development function
5. Support wide operating temperature range (-40-105 degrees)
Sxx32F207 VET6 M3 120MHz No/No 512K 128K AT32F407A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F207 VGT6 M3 120MHz No/No 1024K 128K AT32F407A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F302 C8T6 M4 72MHz Yes/Yes 64K 16K AT32F413 C8T7 M4 200MHz Yes/Yes 64K 32k Refer to AT32F413 description on this page (3rd~7th column)
Sxx32F302 CBT6 M4 72MHz Yes/Yes 128K 16K AT32F413 CBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F302 CCT6 M4 72MHz Yes/Yes 256K 40K AT32F413 CCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F302 RBT6 M4 72MHz Yes/Yes 128K 32K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F302 RCT6 M4 72MHz Yes/Yes 256K 40K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F302 RET6 M4 72MHz Yes/Yes 512K 64K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K Refer to AT32F403A description on this page (8th~13th column)
Sxx32F302 VCT6 M4 72MHz Yes/Yes 256K 40K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F302 VET6 M4 72MHz Yes/Yes 512K 64K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F303 C8T6 M4 72MHz Yes/Yes 64K 16K AT32F413 C8T7 M4 200MHz Yes/Yes 64K 32K Refer to AT32F413 description on this page (3rd~7th column)
Sxx32F303 K8T6 M4 72MHz Yes/Yes 64K 16K AT32F413 KBU7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F303 CBT6 M4 72MHz Yes/Yes 128K 40K AT32F413 CBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F303 CCT6 M4 72MHz Yes/Yes 256K 48K AT32F413 CCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F303 RBT6 M4 72MHz Yes/Yes 128K 40K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F303 RCT6 M4 72MHz Yes/Yes 256K 48K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F303 RET6 M4 72MHz Yes/Yes 512K 80K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K Refer to AT32F403A description on this page (8th~13th column)
Sxx32F303 VCT6 M4 72MHz Yes/Yes 256K 48K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F303 VET6 M4 72MHz Yes/Yes 512K 80K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F303 ZET6 M4 72MHz Yes/Yes 512K 80K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K Refer to AT32F403 description on this page (14th~16th column)
Sxx32F401 CBU6 M4 84MHz Yes/Yes 128K 64K AT32F413 KBU7 M4 200MHz Yes/Yes 128k 16/32/64K Refer to AT32F413 description on this page (3rd~7th column)
Sxx32F401 CCU6 M4 84MHz Yes/Yes 256K 64K AT32F413 CCU7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F401 RBT6 M4 84MHz Yes/Yes 128k 64K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F401 RCT6 M4 84MHz Yes/Yes 256K 64K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F401 VCT6 M4 84MHz Yes/Yes 256K 64K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K Refer to AT32F403A description on this page (8th~13th column)
Sxx32F401 RET6 M4 84MHz Yes/Yes 512K 96K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F401 VET6 M4 84MHz Yes/Yes 512K 96K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F411 CCU6 M4 100MHz Yes/Yes 256K 128K AT32F403A CCU7 M4 240MHz Yes/Yes 256K 96/224K Refer to AT32F403A description on this page (8th~13th column)
Sxx32F411 CEU6 M4 100MHz Yes/Yes 512K 128K AT32F403A CGU7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F411 RCT6 M4 100MHz Yes/Yes 256K 128K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F411 RET6 M4 100MHz Yes/Yes 512K 128K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F411 VCT6 M4 100MHz Yes/Yes 256K 128K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F411 VET6 M4 100MHz Yes/Yes 512K 128K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F405 RGT6 M4 168MHz Yes/Yes 1024K 192K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K 1. AT32F403A does not support USB OTG
2. If the SRAM requirement is within 32KB, AT32F415 (built-in USB OTG) can be used
3. Refer to AT32F403A description on this page (8th~13th column)
Sxx32F405 VGT6 M4 168MHz Yes/Yes 1024K 192K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F405 ZGT6 M4 168MHz Yes/Yes 1024K 192K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K 1. AT32F403 does not support USB OTG
2. If the SRAM requirement is within 32KB, AT32F415 (built-in USB OTG) can be used
3. Refer to AT32F403 description on this page (14th~16th column)
Sxx32F446 RCT6 M4 180MHz Yes/Yes 256K 128K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K Refer to AT32F403A description on this page (8th~14th column)
Sxx32F446 RET6 M4 180MHz Yes/Yes 512K 128K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F446 VCT6 M4 180MHz Yes/Yes 256K 128K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F446 VET6 M4 180MHz Yes/Yes 512K 128K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F446 ZCT6 M4 180MHz Yes/Yes 256K 128K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K Refer to AT32F403 description on this page (14th~16th column)
Sxx32F446 ZET6 M4 180MHz Yes/Yes 512K 128K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F072 C8T6 M0 48MHz No/No 64K 16K AT32F415 C8T7 M4 150MHz Yes/No 64K 32K 1.M4 main frequency 150MHz (with DSP), support Flash 256/128/64KB, RAM 32KB selection
2.USB2.0 FS Host/Device, Device supports Crystal-less
3. Up to 1280 Byte USB RAM buffer, compatible with Sxx32F105
4. Support UARTx5, SPI/I2S x 2...etc
5. Built-in sLib function: unique security & secondary development function
6.18KB system memory (ISP bootloader) can be set and expanded into customer code area at one time
7. All packages, including QFN32 4x4mm, support USB OTG
8. Support wide operating temperature range (-40-105 degrees)
Sxx32F072 C8U6 M0 48MHz No/No 64K 16K AT32F415 K8U7 M4 150MHz Yes/No 64K 32K
Sxx32F072 CBT6 M0 48MHz No/No 128K 16K AT32F415 CBT7 M4 150MHz Yes/No 128K 32K
Sxx32F072 CBU6 M0 48MHz No/No 128K 16K AT32F415 KBU7 M4 150MHz Yes/No 128K 32K
Sxx32F072 R8T6 M0 48MHz No/No 64K 16K AT32F415 R8T7 M4 150MHz Yes/No 64K 32K
Sxx32F072 RBT6 M0 48MHz No/No 128K 16K AT32F415 RBT7 M4 150MHz Yes/No 128K 32K
Sxx32F107 RBT6 M3 72MHz No/No 128K 64K AT32F407 RCT7 M4 240MHz Yes/Yes 256K 96/224K 1. CPU up to 240MHz
2. SRAM setting is bigger and more flexible 96/224KB
3. Support SPIx4, full duplex I2Sx2, UARTx8, SDIOx2
4. Built-in sLib function: unique security & secondary development function
5. Support wide operating temperature range (-40-105 degrees)
Sxx32F107 RCT6 M3 72MHz No/No 256K 64K AT32F407 RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F107 VBT6 M3 72MHz No/No 128K 64K AT32F407 VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F107 VCT6 M3 72MHz No/No 256K 64K AT32F407 VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F407 VET6 M4 168MHz Yes/Yes 512K 192K AT32F407A VGT7 M4 240MHz Yes/Yes 256K 96/224K 1. CPU up to 240MHz
2. SRAM settings are more flexible 96/224KB
3. Support SPIx4, full duplex I2Sx2, UARTx8, SDIOx2
4. Built-in sLib function: unique security & secondary development function
5. Support wide operating temperature range (-40-105 degrees)
Sxx32F407 VGT6 M4 168MHz Yes/Yes 1024K 192K AT32F407A VGT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F030 F4P6 M0 48MHz No/No 16K 4KB AT32F421 F4P7 M4 120MHz Yes/No 16K 8K 1.M4 main frequency 120MHz (with DSP), support Flash 64/32/16KB selection
2. SRAM has a larger selection than Flash at the same level, up to 8/16KB
3. Support I2Sx2, COMP, ADC channels more (up to 15ch)
4. Built-in sLib function: unique security & secondary development function
5.4KB system memory (ISP bootloader) can be set to expand into customer code area at one time
6. Support wide operating temperature range (-40-105 degrees)
Sxx32F030 K6T6 M0 48MHz No/No 32K 4KB AT32F421 K6T7 M4 120MHz Yes/No 32K 16K
Sxx32F030 C6T6 M0 48MHz No/No 32K 4KB AT32F421 C6T7 M4 120MHz Yes/No 32K 16K
Sxx32F030 C8T6 M0 48MHz No/No 64K 8KB AT32F421 C8T7 M4 120MHz Yes/No 64K 16K



AT32F413C8T7 Mcu Unit STM32F302C8T6 STM32F103C8T6 Software And Hardware Fully Compatible 0

Tags：

Single Chip Microcontroller STM32F446ZCT6

STM32F072C8T6 Fully Compatible

STM32F103ZET6 Single Chip Microcontroller

Send your inquiry directly to us

Tel：86--15112670997
Email：kf@maoyt.com
About Us
Company Profile
Factory Tour
Quality Control
Sitemap
Events
news
Cases
Beijing Silk Road Enterprise Management Services Co.,LTD
MCU, IC/components supporting including urgent types! ST, TI, Onsemi, NXP,XILINX , ALTERA, Central,ROHM, Microchip,ADI,AOS......
We'll get back to you as soon as possible.
Privacy Policy China Good Quality STM32 IC Supplier. Copyright © 2021-2024 stm32ic.com . All Rights Reserved.
