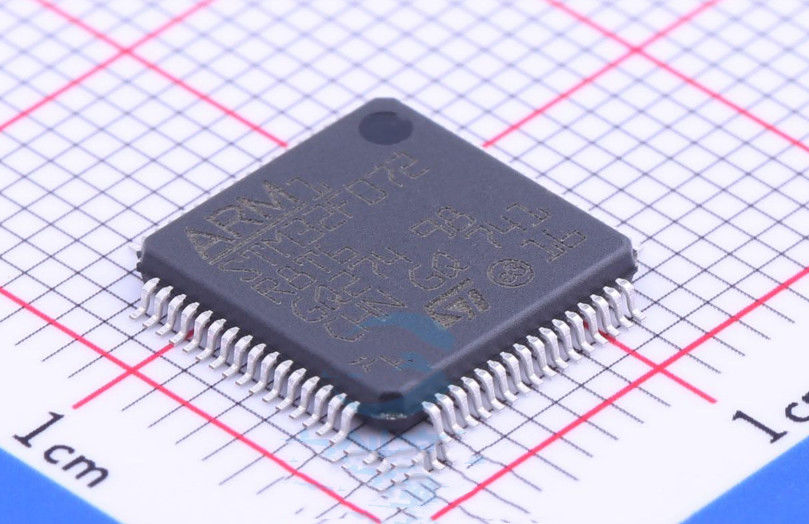

64kb Flash M4 MCU Microcontroller Unit AT32F415R8T7 PIN To PIN Alternative STM32F072R8T6

64kb Flash M4 MCU Microcontroller Unit AT32F415R8T7 PIN To PIN Alternative STM32F072R8T6

64kb MCU Microcontroller Unit

AT32F415R8T7 MCU Microcontroller Unit

STM32F072R8T6

Brand Name:

AT

Model Number:

AT32F413RBT7

Contact Us

Request A Quote
64kb Flash M4 MCU Microcontroller Unit AT32F415R8T7 PIN To PIN Alternative STM32F072R8T6
Product Details
Product Name:
AT32F415R8T7
Package:
LQFP64
Manufacturer:
AT
Core Processor:
M4
Frequency(MHz):
150
Flash(KB):
64
SRAM(KB):
32
I/O:
55
Payment & Shipping Terms
Minimum Order Quantity
1600pcs
Packaging Details
Bagged
Delivery Time
5-15days
Payment Terms
T/T
Supply Ability
300000PCS/month
RELATED PRODUCTS
Contact Us
86--15112670997
kf@maoyt.com
Contact Now
Product Description

MCU M4 AT32F415RBT7 PIN To PIN Alternative STM32F073R8T6



1.M4 main frequency 150MHz (with DSP), support Flash 256/128/64KB, RAM 32KB selection
2.USB2.0 FS Host/Device, Device supports Crystal-less
3. Up to 1280 Byte USB RAM buffer, compatible with Sxx32F105
4. Support UARTx5, SPI/I2S x 2...etc
5. Built-in sLib function: unique security & secondary development function
6.18KB system memory (ISP bootloader) can be set and expanded into customer code area at one time
7. All packages, including QFN32 4x4mm, support USB OTG
8. Support wide operating temperature range (-40-105 degrees)

Hot sell

STM32F103VET6 STM32F427ZGT6 STM32F105ZDT6 STM32F030G4U6 STM32F070F6U6
STM32F103VCT6 STM32F427ZIT6 STM32F105ZET6 STM32F030G6U6 STM32F070F8U6
STM32F103C8T6 STM32F427ZKT6 STM32F105ZFT6 STM32F030G8U6 STM32F070G4U6
STM32F103RCT6 STM32F427IGH6 STM32F105ZGT6 STM32F030G4U6 STM32F070G6U6
STM32F103RBT6 STM32F427IIH6 STM32F105ZIT6 STM32F030G6U6 STM32F070G8U6
STM32F103T4U6 STM32F427IKH6 STM32F101T4U6 STM32F030G8U6 STM32F070G4U6
STM32F103T6U6 STM32F407RET6 STM32F101T6U6 STM32F030K4U6 STM32F070G6U6
STM32F103T8U6 STM32F407RGT6 STM32F101T8U6 STM32F030K6U6 STM32F070G8U6
STM32F103TBU6 STM32F407RKT6 STM32F101TBU6 STM32F030K8U6 STM32F070K4U6
STM32F103C4T6 STM32F407VET6 STM32F101C4T6 STM32F030C4U6 STM32F070K6U6
STM32F103C6T6 STM32F407VGT6 STM32F101C6T6 STM32F030C6U6 STM32F070K8U6
STM32F103CBT6 STM32F407VKT6 STM32F101C8T6 STM32F030C8U6 STM32F070C4U6
STM32F103R4T6 STM32F407ZET6 STM32F101CBT6 STM32F030R8U6 STM32F070C6U6
STM32F103R6T6 STM32F407ZGT6 STM32F101R4T6 STM32F207RCT6 STM32F070C8U6
STM32F103R8T6 STM32F407ZKT6 STM32F101R6T6 STM32F207RET6 STM32F070R8U6
STM32F103RBT6 STM32F407VEH6 STM32F101R8T6 STM32F207RGT6 STM32F105RBT6
STM32F103RDT6 STM32F407VGH6 STM32F101RBT6 STM32F207RKT6 STM32F105RCT6
STM32F103RET6 STM32F407VKH6 STM32F101RCT6 STM32F207VCT6 STM32F105RDT6
STM32F103RFT6 STM32F407IEH6 STM32F101RDT6 STM32F207VET6 STM32F105RET6
STM32F103RGT6 STM32F407IGH6 STM32F101RET6 STM32F207VGT6 STM32F105RFT6
STM32F103RIT6 STM32F4071KH6 STM32F101RFT6 STM32F207VKT6 STM32F105RGT6
STM32F103RKT6 STM32F405RET6 STM32F101RGT6 STM32F207ZCT6 STM32F105RIT6
STM32F103V8T6 STM32F405RGT6 STM32F101RIT6 STM32F207ZET6 STM32F105RKT6
STM32F103VBT6 STM32F405RKT6 STM32F101RKT6 STM32F207ZGT6 STM32F105V8T6
STM32F103VDT6 STM32F405VGT6 STM32F101V8T6 STM32F207ZKT6 STM32F105VBT6
STM32F103VFT6 STM32F405VKT6 STM32F101VBT6 STM32F207IET6 STM32F105VCT6
STM32F103VGT6 STM32F405ZGT6 STM32F101VCT6 STM32F207IGT6 STM32F105VDT6
STM32F103VIT6 STM32F405ZKT6 STM32F101VDT6 STM32F207IKT6 STM32F105VET6
STM32F103VKT6 STM32F405VGH6 STM32F101VET6 STM32F427VET6 STM32F105VFT6
STM32F103ZCT6 STM32F405VKH6 STM32F101VFT6 STM32F427VGT6 STM32F105VGT6
STM32F103ZDT6 STM32F205VCT6 STM32F101VGT6 STM32F427VIT6 STM32F105VIT6
STM32F103ZET6 STM32F205VET6 STM32F101VIT6 STM32F427VKT6 STM32F105VKT6
STM32F103ZFT6 STM32F205VGT6 STM32F101VKT6 STM32F427ZET6 STM32F105ZCT6
STM32F103ZGT6 STM32F205VKT6 STM32F101ZCT6 STM32F205ZGT6 STM32F101ZFT6
STM32F103ZIT6 STM32F205ZCT6 STM32F101ZDT6 STM32F205ZKT6 STM32F101ZGT6
STM32F030C8T6 STM32F205ZET6 STM32F101ZET6 STM32F070F4U6 STM32F101ZIT6
STM32F030F4U6 STM32F030F6U6 STM32F030F8U6 STM8S003F3P6 STM32L151VCT6
Sxx Series Sxx Part Core CPU DSP/FPU Flash SRAM AT32 Series AT32 Part Core CPU DSP/FPU Flash SRAM
Sxx32F103 C8T6 M3 72MHz No/No 64K 20K AT32F413 C8T7 M4 200MHz Yes/Yes 64K 32K
Sxx32F103 CBT6 M3 72MHz No/No 128K 20K AT32F413 CBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 CBU6 M3 72MHz No/No 128K 20K AT32F413 CBU7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 RBT6 M3 72MHz No/No 128K 20K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F103 RCT6 M3 72MHz No/No 256K 48K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F103 RCT6 M3 72MHz No/No 256K 48K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F103 RET6 M3 72MHz No/No 512K 64K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 RGT6 M3 72MHz No/No 1024K 96K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 VCT6 M3 72MHz No/No 256K 48K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F103 VET6 M3 72MHz No/No 512K 64K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 VGT6 M3 72MHz No/No 1024K 96K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F103 ZCT6 M3 72MHz No/No 256K 48K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F103 ZET6 M3 72MHz No/No 512K 64K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F103 ZGT6 M3 72MHz No/No 1024K 96K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F105 RBT6 M3 72MHz No/No 128K 64K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F105 RCT6 M3 72MHz No/No 256K 64K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F105 VCT6 M3 72MHz No/No 256K 64K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F205 RCT6 M3 120MHz No/No 256K 64K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F205 RET6 M3 120MHz No/No 512K 96K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 RGT6 M3 120MHz No/No 1024K 128K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 VCT6 M3 120MHz No/No 256K 64K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F205 VET6 M3 120MHz No/No 512K 96K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 VGT6 M3 120MHz No/No 1024K 128K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F205 ZCT6 M3 120MHz No/No 256K 64K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F205 ZET6 M3 120MHz No/No 512K 96K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F205 ZGT6 M3 120MHz No/No 1024K 128K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F207 VCT6 M3 120MHz No/No 256K 128K AT32F407A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F207 VET6 M3 120MHz No/No 512K 128K AT32F407A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F207 VGT6 M3 120MHz No/No 1024K 128K AT32F407A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F302 C8T6 M4 72MHz Yes/Yes 64K 16K AT32F413 C8T7 M4 200MHz Yes/Yes 64K 32k
Sxx32F302 CBT6 M4 72MHz Yes/Yes 128K 16K AT32F413 CBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F302 CCT6 M4 72MHz Yes/Yes 256K 40K AT32F413 CCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F302 RBT6 M4 72MHz Yes/Yes 128K 32K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F302 RCT6 M4 72MHz Yes/Yes 256K 40K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F302 RET6 M4 72MHz Yes/Yes 512K 64K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F302 VCT6 M4 72MHz Yes/Yes 256K 40K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F302 VET6 M4 72MHz Yes/Yes 512K 64K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F303 C8T6 M4 72MHz Yes/Yes 64K 16K AT32F413 C8T7 M4 200MHz Yes/Yes 64K 32K
Sxx32F303 K8T6 M4 72MHz Yes/Yes 64K 16K AT32F413 KBU7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F303 CBT6 M4 72MHz Yes/Yes 128K 40K AT32F413 CBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F303 CCT6 M4 72MHz Yes/Yes 256K 48K AT32F413 CCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F303 RBT6 M4 72MHz Yes/Yes 128K 40K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F303 RCT6 M4 72MHz Yes/Yes 256K 48K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F303 RET6 M4 72MHz Yes/Yes 512K 80K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F303 VCT6 M4 72MHz Yes/Yes 256K 48K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F303 VET6 M4 72MHz Yes/Yes 512K 80K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F303 ZET6 M4 72MHz Yes/Yes 512K 80K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F401 CBU6 M4 84MHz Yes/Yes 128K 64K AT32F413 KBU7 M4 200MHz Yes/Yes 128k 16/32/64K
Sxx32F401 CCU6 M4 84MHz Yes/Yes 256K 64K AT32F413 CCU7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F401 RBT6 M4 84MHz Yes/Yes 128k 64K AT32F413 RBT7 M4 200MHz Yes/Yes 128K 16/32/64K
Sxx32F401 RCT6 M4 84MHz Yes/Yes 256K 64K AT32F413 RCT7 M4 200MHz Yes/Yes 256K 16/32/64K
Sxx32F401 VCT6 M4 84MHz Yes/Yes 256K 64K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F401 RET6 M4 84MHz Yes/Yes 512K 96K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F401 VET6 M4 84MHz Yes/Yes 512K 96K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F411 CCU6 M4 100MHz Yes/Yes 256K 128K AT32F403A CCU7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F411 CEU6 M4 100MHz Yes/Yes 512K 128K AT32F403A CGU7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F411 RCT6 M4 100MHz Yes/Yes 256K 128K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F411 RET6 M4 100MHz Yes/Yes 512K 128K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F411 VCT6 M4 100MHz Yes/Yes 256K 128K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F411 VET6 M4 100MHz Yes/Yes 512K 128K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F405 RGT6 M4 168MHz Yes/Yes 1024K 192K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F405 VGT6 M4 168MHz Yes/Yes 1024K 192K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F405 ZGT6 M4 168MHz Yes/Yes 1024K 192K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F446 RCT6 M4 180MHz Yes/Yes 256K 128K AT32F403A RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F446 RET6 M4 180MHz Yes/Yes 512K 128K AT32F403A RGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F446 VCT6 M4 180MHz Yes/Yes 256K 128K AT32F403A VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F446 VET6 M4 180MHz Yes/Yes 512K 128K AT32F403A VGT7 M4 240MHz Yes/Yes 1024K 96/224K
Sxx32F446 ZCT6 M4 180MHz Yes/Yes 256K 128K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F446 ZET6 M4 180MHz Yes/Yes 512K 128K AT32F403 ZGT6 M4 200MHz Yes/Yes 1024K 96/224K
Sxx32F072 C8T6 M0 48MHz No/No 64K 16K AT32F415 C8T7 M4 150MHz Yes/No 64K 32K
Sxx32F072 C8U6 M0 48MHz No/No 64K 16K AT32F415 K8U7 M4 150MHz Yes/No 64K 32K
Sxx32F072 CBT6 M0 48MHz No/No 128K 16K AT32F415 CBT7 M4 150MHz Yes/No 128K 32K
Sxx32F072 CBU6 M0 48MHz No/No 128K 16K AT32F415 KBU7 M4 150MHz Yes/No 128K 32K
Sxx32F072 R8T6 M0 48MHz No/No 64K 16K AT32F415 R8T7 M4 150MHz Yes/No 64K 32K
Sxx32F072 RBT6 M0 48MHz No/No 128K 16K AT32F415 RBT7 M4 150MHz Yes/No 128K 32K
Sxx32F107 RBT6 M3 72MHz No/No 128K 64K AT32F407 RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F107 RCT6 M3 72MHz No/No 256K 64K AT32F407 RCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F107 VBT6 M3 72MHz No/No 128K 64K AT32F407 VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F107 VCT6 M3 72MHz No/No 256K 64K AT32F407 VCT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F407 VET6 M4 168MHz Yes/Yes 512K 192K AT32F407A VGT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F407 VGT6 M4 168MHz Yes/Yes 1024K 192K AT32F407A VGT7 M4 240MHz Yes/Yes 256K 96/224K
Sxx32F030 F4P6 M0 48MHz No/No 16K 4KB AT32F421 F4P7 M4 120MHz Yes/No 16K 8K
Sxx32F030 K6T6 M0 48MHz No/No 32K 4KB AT32F421 K6T7 M4 120MHz Yes/No 32K 16K
Sxx32F030 C6T6 M0 48MHz No/No 32K 4KB AT32F421 C6T7 M4 120MHz Yes/No 32K 16K
Sxx32F030 C8T6 M0 48MHz No/No 64K 8KB AT32F421 C8T7 M4 120MHz Yes/No 64K 16K
