Brand Name:
AT
Model Number:
AT32F413RBT7
Contact Us

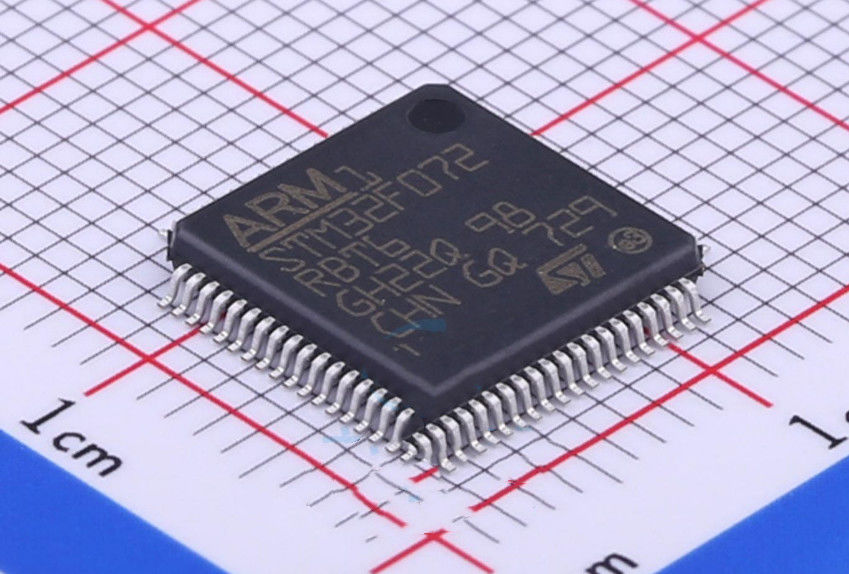

MCU M4 AT32F415RBT7 PIN To PIN Alternative STM32F072RBT6 STM32F073R8T6 FLASH 128KB
1.M4 main frequency 150MHz (with DSP), support Flash 256/128/64KB, RAM 32KB selection
2.USB2.0 FS Host/Device, Device supports Crystal-less
3. Up to 1280 Byte USB RAM buffer, compatible with Sxx32F105
4. Support UARTx5, SPI/I2S x 2...etc
5. Built-in sLib function: unique security & secondary development function
6.18KB system memory (ISP bootloader) can be set and expanded into customer code area at one time
7. All packages, including QFN32 4x4mm, support USB OTG
8. Support wide operating temperature range (-40-105 degrees)
Hot sell
STM32F103VET6 | STM32F427ZGT6 | STM32F105ZDT6 | STM32F030G4U6 | STM32F070F6U6 |
STM32F103VCT6 | STM32F427ZIT6 | STM32F105ZET6 | STM32F030G6U6 | STM32F070F8U6 |
STM32F103C8T6 | STM32F427ZKT6 | STM32F105ZFT6 | STM32F030G8U6 | STM32F070G4U6 |
STM32F103RCT6 | STM32F427IGH6 | STM32F105ZGT6 | STM32F030G4U6 | STM32F070G6U6 |
STM32F103RBT6 | STM32F427IIH6 | STM32F105ZIT6 | STM32F030G6U6 | STM32F070G8U6 |
STM32F103T4U6 | STM32F427IKH6 | STM32F101T4U6 | STM32F030G8U6 | STM32F070G4U6 |
STM32F103T6U6 | STM32F407RET6 | STM32F101T6U6 | STM32F030K4U6 | STM32F070G6U6 |
STM32F103T8U6 | STM32F407RGT6 | STM32F101T8U6 | STM32F030K6U6 | STM32F070G8U6 |
STM32F103TBU6 | STM32F407RKT6 | STM32F101TBU6 | STM32F030K8U6 | STM32F070K4U6 |
STM32F103C4T6 | STM32F407VET6 | STM32F101C4T6 | STM32F030C4U6 | STM32F070K6U6 |
STM32F103C6T6 | STM32F407VGT6 | STM32F101C6T6 | STM32F030C6U6 | STM32F070K8U6 |
STM32F103CBT6 | STM32F407VKT6 | STM32F101C8T6 | STM32F030C8U6 | STM32F070C4U6 |
STM32F103R4T6 | STM32F407ZET6 | STM32F101CBT6 | STM32F030R8U6 | STM32F070C6U6 |
STM32F103R6T6 | STM32F407ZGT6 | STM32F101R4T6 | STM32F207RCT6 | STM32F070C8U6 |
STM32F103R8T6 | STM32F407ZKT6 | STM32F101R6T6 | STM32F207RET6 | STM32F070R8U6 |
STM32F103RBT6 | STM32F407VEH6 | STM32F101R8T6 | STM32F207RGT6 | STM32F105RBT6 |
STM32F103RDT6 | STM32F407VGH6 | STM32F101RBT6 | STM32F207RKT6 | STM32F105RCT6 |
STM32F103RET6 | STM32F407VKH6 | STM32F101RCT6 | STM32F207VCT6 | STM32F105RDT6 |
STM32F103RFT6 | STM32F407IEH6 | STM32F101RDT6 | STM32F207VET6 | STM32F105RET6 |
STM32F103RGT6 | STM32F407IGH6 | STM32F101RET6 | STM32F207VGT6 | STM32F105RFT6 |
STM32F103RIT6 | STM32F4071KH6 | STM32F101RFT6 | STM32F207VKT6 | STM32F105RGT6 |
STM32F103RKT6 | STM32F405RET6 | STM32F101RGT6 | STM32F207ZCT6 | STM32F105RIT6 |
STM32F103V8T6 | STM32F405RGT6 | STM32F101RIT6 | STM32F207ZET6 | STM32F105RKT6 |
STM32F103VBT6 | STM32F405RKT6 | STM32F101RKT6 | STM32F207ZGT6 | STM32F105V8T6 |
STM32F103VDT6 | STM32F405VGT6 | STM32F101V8T6 | STM32F207ZKT6 | STM32F105VBT6 |
STM32F103VFT6 | STM32F405VKT6 | STM32F101VBT6 | STM32F207IET6 | STM32F105VCT6 |
STM32F103VGT6 | STM32F405ZGT6 | STM32F101VCT6 | STM32F207IGT6 | STM32F105VDT6 |
STM32F103VIT6 | STM32F405ZKT6 | STM32F101VDT6 | STM32F207IKT6 | STM32F105VET6 |
STM32F103VKT6 | STM32F405VGH6 | STM32F101VET6 | STM32F427VET6 | STM32F105VFT6 |
STM32F103ZCT6 | STM32F405VKH6 | STM32F101VFT6 | STM32F427VGT6 | STM32F105VGT6 |
STM32F103ZDT6 | STM32F205VCT6 | STM32F101VGT6 | STM32F427VIT6 | STM32F105VIT6 |
STM32F103ZET6 | STM32F205VET6 | STM32F101VIT6 | STM32F427VKT6 | STM32F105VKT6 |
STM32F103ZFT6 | STM32F205VGT6 | STM32F101VKT6 | STM32F427ZET6 | STM32F105ZCT6 |
STM32F103ZGT6 | STM32F205VKT6 | STM32F101ZCT6 | STM32F205ZGT6 | STM32F101ZFT6 |
STM32F103ZIT6 | STM32F205ZCT6 | STM32F101ZDT6 | STM32F205ZKT6 | STM32F101ZGT6 |
STM32F030C8T6 | STM32F205ZET6 | STM32F101ZET6 | STM32F070F4U6 | STM32F101ZIT6 |
STM32F030F4U6 | STM32F030F6U6 | STM32F030F8U6 | STM8S003F3P6 | STM32L151VCT6 |
Sxx Series | Sxx Part | Core | CPU | DSP/FPU | Flash | SRAM | AT32 Series | AT32 Part | Core | CPU | DSP/FPU | Flash | SRAM |
Sxx32F103 | C8T6 | M3 | 72MHz | No/No | 64K | 20K | AT32F413 | C8T7 | M4 | 200MHz | Yes/Yes | 64K | 32K |
Sxx32F103 | CBT6 | M3 | 72MHz | No/No | 128K | 20K | AT32F413 | CBT7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F103 | CBU6 | M3 | 72MHz | No/No | 128K | 20K | AT32F413 | CBU7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F103 | RBT6 | M3 | 72MHz | No/No | 128K | 20K | AT32F413 | RBT7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F103 | RCT6 | M3 | 72MHz | No/No | 256K | 48K | AT32F413 | RCT7 | M4 | 200MHz | Yes/Yes | 256K | 16/32/64K |
Sxx32F103 | RCT6 | M3 | 72MHz | No/No | 256K | 48K | AT32F403A | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F103 | RET6 | M3 | 72MHz | No/No | 512K | 64K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F103 | RGT6 | M3 | 72MHz | No/No | 1024K | 96K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F103 | VCT6 | M3 | 72MHz | No/No | 256K | 48K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F103 | VET6 | M3 | 72MHz | No/No | 512K | 64K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F103 | VGT6 | M3 | 72MHz | No/No | 1024K | 96K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F103 | ZCT6 | M3 | 72MHz | No/No | 256K | 48K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F103 | ZET6 | M3 | 72MHz | No/No | 512K | 64K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F103 | ZGT6 | M3 | 72MHz | No/No | 1024K | 96K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F105 | RBT6 | M3 | 72MHz | No/No | 128K | 64K | AT32F403A | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F105 | RCT6 | M3 | 72MHz | No/No | 256K | 64K | AT32F403A | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F105 | VCT6 | M3 | 72MHz | No/No | 256K | 64K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F205 | RCT6 | M3 | 120MHz | No/No | 256K | 64K | AT32F403A | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F205 | RET6 | M3 | 120MHz | No/No | 512K | 96K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F205 | RGT6 | M3 | 120MHz | No/No | 1024K | 128K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F205 | VCT6 | M3 | 120MHz | No/No | 256K | 64K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F205 | VET6 | M3 | 120MHz | No/No | 512K | 96K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F205 | VGT6 | M3 | 120MHz | No/No | 1024K | 128K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F205 | ZCT6 | M3 | 120MHz | No/No | 256K | 64K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F205 | ZET6 | M3 | 120MHz | No/No | 512K | 96K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F205 | ZGT6 | M3 | 120MHz | No/No | 1024K | 128K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F207 | VCT6 | M3 | 120MHz | No/No | 256K | 128K | AT32F407A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F207 | VET6 | M3 | 120MHz | No/No | 512K | 128K | AT32F407A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F207 | VGT6 | M3 | 120MHz | No/No | 1024K | 128K | AT32F407A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F302 | C8T6 | M4 | 72MHz | Yes/Yes | 64K | 16K | AT32F413 | C8T7 | M4 | 200MHz | Yes/Yes | 64K | 32k |
Sxx32F302 | CBT6 | M4 | 72MHz | Yes/Yes | 128K | 16K | AT32F413 | CBT7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F302 | CCT6 | M4 | 72MHz | Yes/Yes | 256K | 40K | AT32F413 | CCT7 | M4 | 200MHz | Yes/Yes | 256K | 16/32/64K |
Sxx32F302 | RBT6 | M4 | 72MHz | Yes/Yes | 128K | 32K | AT32F413 | RBT7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F302 | RCT6 | M4 | 72MHz | Yes/Yes | 256K | 40K | AT32F413 | RCT7 | M4 | 200MHz | Yes/Yes | 256K | 16/32/64K |
Sxx32F302 | RET6 | M4 | 72MHz | Yes/Yes | 512K | 64K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F302 | VCT6 | M4 | 72MHz | Yes/Yes | 256K | 40K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F302 | VET6 | M4 | 72MHz | Yes/Yes | 512K | 64K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F303 | C8T6 | M4 | 72MHz | Yes/Yes | 64K | 16K | AT32F413 | C8T7 | M4 | 200MHz | Yes/Yes | 64K | 32K |
Sxx32F303 | K8T6 | M4 | 72MHz | Yes/Yes | 64K | 16K | AT32F413 | KBU7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F303 | CBT6 | M4 | 72MHz | Yes/Yes | 128K | 40K | AT32F413 | CBT7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F303 | CCT6 | M4 | 72MHz | Yes/Yes | 256K | 48K | AT32F413 | CCT7 | M4 | 200MHz | Yes/Yes | 256K | 16/32/64K |
Sxx32F303 | RBT6 | M4 | 72MHz | Yes/Yes | 128K | 40K | AT32F413 | RBT7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F303 | RCT6 | M4 | 72MHz | Yes/Yes | 256K | 48K | AT32F413 | RCT7 | M4 | 200MHz | Yes/Yes | 256K | 16/32/64K |
Sxx32F303 | RET6 | M4 | 72MHz | Yes/Yes | 512K | 80K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F303 | VCT6 | M4 | 72MHz | Yes/Yes | 256K | 48K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F303 | VET6 | M4 | 72MHz | Yes/Yes | 512K | 80K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F303 | ZET6 | M4 | 72MHz | Yes/Yes | 512K | 80K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F401 | CBU6 | M4 | 84MHz | Yes/Yes | 128K | 64K | AT32F413 | KBU7 | M4 | 200MHz | Yes/Yes | 128k | 16/32/64K |
Sxx32F401 | CCU6 | M4 | 84MHz | Yes/Yes | 256K | 64K | AT32F413 | CCU7 | M4 | 200MHz | Yes/Yes | 256K | 16/32/64K |
Sxx32F401 | RBT6 | M4 | 84MHz | Yes/Yes | 128k | 64K | AT32F413 | RBT7 | M4 | 200MHz | Yes/Yes | 128K | 16/32/64K |
Sxx32F401 | RCT6 | M4 | 84MHz | Yes/Yes | 256K | 64K | AT32F413 | RCT7 | M4 | 200MHz | Yes/Yes | 256K | 16/32/64K |
Sxx32F401 | VCT6 | M4 | 84MHz | Yes/Yes | 256K | 64K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F401 | RET6 | M4 | 84MHz | Yes/Yes | 512K | 96K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F401 | VET6 | M4 | 84MHz | Yes/Yes | 512K | 96K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F411 | CCU6 | M4 | 100MHz | Yes/Yes | 256K | 128K | AT32F403A | CCU7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F411 | CEU6 | M4 | 100MHz | Yes/Yes | 512K | 128K | AT32F403A | CGU7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F411 | RCT6 | M4 | 100MHz | Yes/Yes | 256K | 128K | AT32F403A | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F411 | RET6 | M4 | 100MHz | Yes/Yes | 512K | 128K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F411 | VCT6 | M4 | 100MHz | Yes/Yes | 256K | 128K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F411 | VET6 | M4 | 100MHz | Yes/Yes | 512K | 128K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F405 | RGT6 | M4 | 168MHz | Yes/Yes | 1024K | 192K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F405 | VGT6 | M4 | 168MHz | Yes/Yes | 1024K | 192K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F405 | ZGT6 | M4 | 168MHz | Yes/Yes | 1024K | 192K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F446 | RCT6 | M4 | 180MHz | Yes/Yes | 256K | 128K | AT32F403A | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F446 | RET6 | M4 | 180MHz | Yes/Yes | 512K | 128K | AT32F403A | RGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F446 | VCT6 | M4 | 180MHz | Yes/Yes | 256K | 128K | AT32F403A | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F446 | VET6 | M4 | 180MHz | Yes/Yes | 512K | 128K | AT32F403A | VGT7 | M4 | 240MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F446 | ZCT6 | M4 | 180MHz | Yes/Yes | 256K | 128K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F446 | ZET6 | M4 | 180MHz | Yes/Yes | 512K | 128K | AT32F403 | ZGT6 | M4 | 200MHz | Yes/Yes | 1024K | 96/224K |
Sxx32F072 | C8T6 | M0 | 48MHz | No/No | 64K | 16K | AT32F415 | C8T7 | M4 | 150MHz | Yes/No | 64K | 32K |
Sxx32F072 | C8U6 | M0 | 48MHz | No/No | 64K | 16K | AT32F415 | K8U7 | M4 | 150MHz | Yes/No | 64K | 32K |
Sxx32F072 | CBT6 | M0 | 48MHz | No/No | 128K | 16K | AT32F415 | CBT7 | M4 | 150MHz | Yes/No | 128K | 32K |
Sxx32F072 | CBU6 | M0 | 48MHz | No/No | 128K | 16K | AT32F415 | KBU7 | M4 | 150MHz | Yes/No | 128K | 32K |
Sxx32F072 | R8T6 | M0 | 48MHz | No/No | 64K | 16K | AT32F415 | R8T7 | M4 | 150MHz | Yes/No | 64K | 32K |
Sxx32F072 | RBT6 | M0 | 48MHz | No/No | 128K | 16K | AT32F415 | RBT7 | M4 | 150MHz | Yes/No | 128K | 32K |
Sxx32F107 | RBT6 | M3 | 72MHz | No/No | 128K | 64K | AT32F407 | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F107 | RCT6 | M3 | 72MHz | No/No | 256K | 64K | AT32F407 | RCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F107 | VBT6 | M3 | 72MHz | No/No | 128K | 64K | AT32F407 | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F107 | VCT6 | M3 | 72MHz | No/No | 256K | 64K | AT32F407 | VCT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F407 | VET6 | M4 | 168MHz | Yes/Yes | 512K | 192K | AT32F407A | VGT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F407 | VGT6 | M4 | 168MHz | Yes/Yes | 1024K | 192K | AT32F407A | VGT7 | M4 | 240MHz | Yes/Yes | 256K | 96/224K |
Sxx32F030 | F4P6 | M0 | 48MHz | No/No | 16K | 4KB | AT32F421 | F4P7 | M4 | 120MHz | Yes/No | 16K | 8K |
Sxx32F030 | K6T6 | M0 | 48MHz | No/No | 32K | 4KB | AT32F421 | K6T7 | M4 | 120MHz | Yes/No | 32K | 16K |
Sxx32F030 | C6T6 | M0 | 48MHz | No/No | 32K | 4KB | AT32F421 | C6T7 | M4 | 120MHz | Yes/No | 32K | 16K |
Sxx32F030 | C8T6 | M0 | 48MHz | No/No | 64K | 8KB | AT32F421 | C8T7 | M4 | 120MHz | Yes/No | 64K | 16K |
