Name: M1 THRU M7 High Voltage Rectifier Diode Reverse Voltage - 50 to 1000 Volts
Brand: OTOMO
SKU: M1 THRU M7
Rating: 4.5 (128 reviews)

Home > products > High Voltage Rectifier Diode >

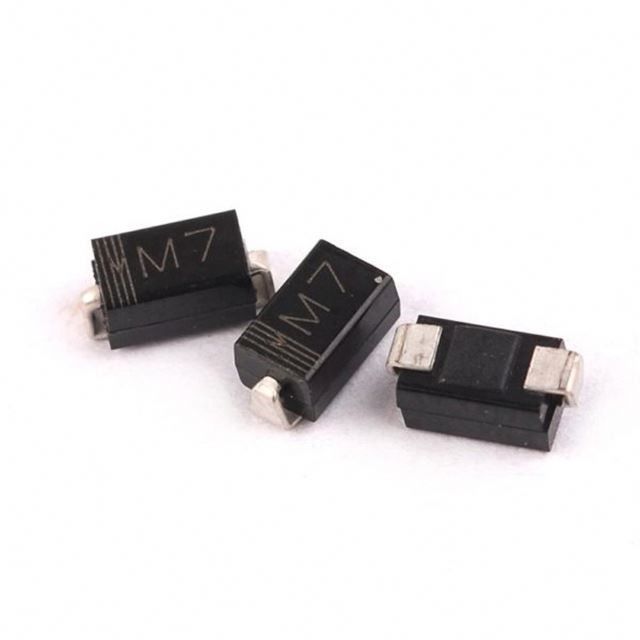

M1 THRU M7 High Voltage Rectifier Diode Reverse Voltage - 50 to 1000 Volts

high voltage bridge rectifier

high current rectifier diode

Place of Origin:

ShenZhen China

Brand Name:

OTOMO

Certification:

RoHS、SGS

Model Number:

M1 THRU M7

Request A Quote

Product Details

Type:

General Purpose Silicon Rectifier

RθJA:

75.0℃/W

IFSM:

30.0Amp

CJ:

15.0pF

Product ID:

M1 THRU M7

Tj:

150℃

Payment & Shipping Terms

Minimum Order Quantity

1000-2000 PCS

Price

Negotiated

Packaging Details

Boxed

Delivery Time

1 - 2 Weeks

Payment Terms

L/C T/T Western Union

Supply Ability

18,000,000PCS / Per Day

RELATED PRODUCTS

86--15112670997

kf@maoyt.com

Contact Now

Product Description

M1 THRU M7 Reverse Voltage - 50 to 1000 Volts Forward Current -1.0 Ampere

FEATURES

molded plastic technique
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:250 C/10 seconds,0.375”(9.5mm) lead length,5 lbs. (2.3kg) tension
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Construction utilizes void-free

MECHANICALDATA

Case:JEDEC DO-41 molded plastic body

Terminals:Plated axial leads,solderable per MIL-STD-750,

Method2026

Polarity:Color band denotes cathode end

Mounting Position:Any

Weight:0.04ounce,1.10grams

MAXI MUMRATINGS AND ELECTRICAL CHARACTERISTICS
