Brand Name:
ST
Model Number:
TS922AID
Contact Us
| Product name:TS922AID |  |
| Manufacturer: STMicroelectronics | Operating supply current: 3 mA |
| Product Category: Operational Amplifiers - Operational Amplifiers | Shutdown: No Shutdown |
| Installation style: SMD/SMT | CMRR - Common Mode Rejection Ratio: 60 dB |

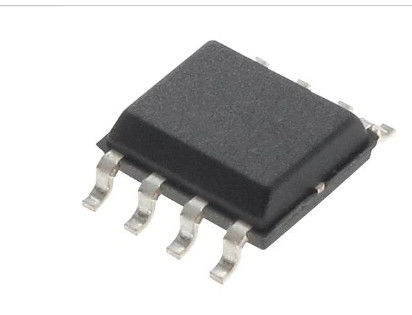

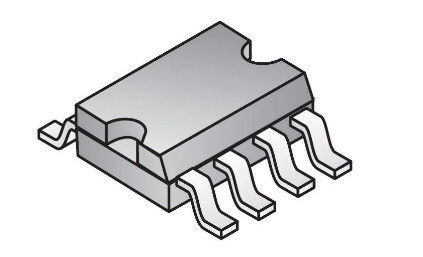

| Package/Case: SOIC-8 | en - Input Voltage Noise Density: 9 nV/sqrt Hz |
| Number of channels: 2 Channel | Series: TS922A |
| Supply voltage - max: 12 V | Package: Tube |
| GBP-Gain Bandwidth Product: 4 MHz | Amplifier Type: General Purpose Amplifier |
| Output current per channel: 80 mA | Brand: STMicroelectronics |
| SR - Slew Rate : 1.3 V/us | Height: 1.65 mm (Max) |
| Vos - Input Bias Voltage : 900 uV | Length: 5 mm (Max) |
| Supply Voltage - Min: 2.7 V | Operating Supply Voltage: 2.7 V to 12 V |
| Minimum operating temperature: - 40 C | Product: Operational Amplifiers |
| Maximum operating temperature: + 125 C | Product Type: Op Amps - Operational Amplifiers |
| Ib - Input Bias Current: 100 nA | Factory Packing Quantity: 2000 |
| Subcategory: Amplifier ICs | Voltage Gain dB: 106.02 dB |
| Power Type: Single | Width: 4 mm (Max) |
| Technology: BiCMOS | Unit weight: 506.600 mg |
