LED1202JR Black LED Lighting Driver Integrated Circuit STMicroelectronics

LED1202JR Black LED Lighting Driver Integrated Circuit STMicroelectronics

LED Lighting Driver IC LED1202JR

12 channel LED1202JR IC

400 kHz LED Lighting Driver IC

Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Integrated Circuit
Quality Warranty:
Supply Voltage:
Standard Design Voltage
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Package: UFBGA-20
Delivery Time
5-8 work days
Payment Terms
Supply Ability
5k-10k per day
Contact Us
Product Description

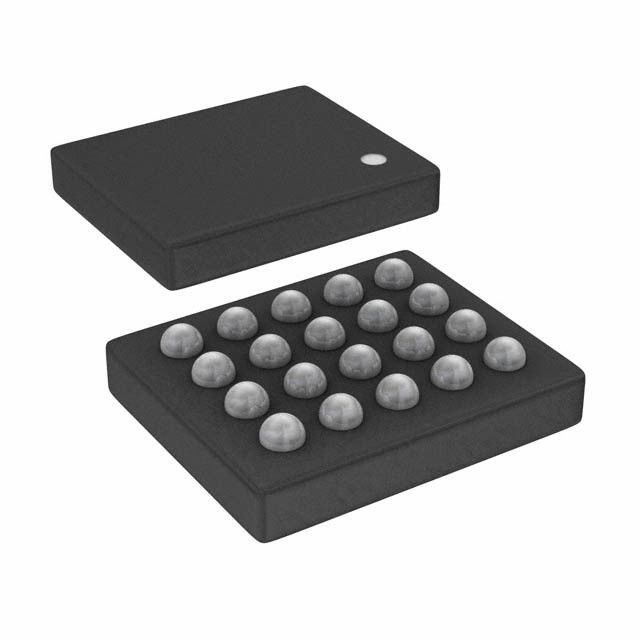

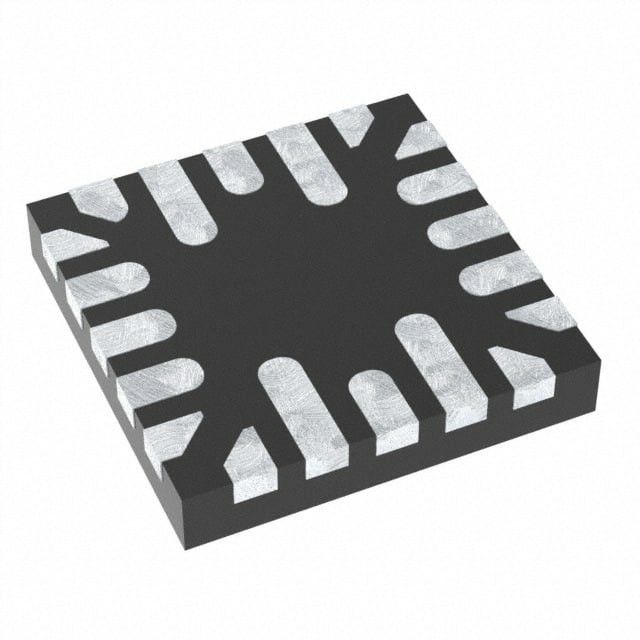

Description The LED1202 is a 12-channel low quiescent current LED driver; it guarantees 5 V output driving capability and each channel is able to provide up to 20 mA with a headroom voltage of 350 mV (typ.) only. The output current can be adjusted separately for each channel by 8-bit analog and 12-bit digital dimming control. A slow turn-on and turn-off time improves the system low noise generation performance; moreover, the phase shifting function helps to reduce the inrush current. Eight patterns can be stored in the internal registers for automatic sequencing without MCU intervention. The pattern sequence can be also configured for duration time and number of repetition. For multi-device applications, a common clock domain can be shared for timing synchronization. The device includes thermal shutdown and open LED detection. The device I²C interface is based on fast mode specification and works up to 400 kHz. Eight I²C addresses are possible by using two configuration pins (A0/A1) only. The LED1202 is available in WLCSP20 package 1.71 x 2.16 x 0.5 mm with 0.4 mm pitch and in QFN20 3x3 package  3 x 0.6 mm with 0.5 mm pitch.

Product name:LED1202JR LED1202JR Black LED Lighting Driver Integrated Circuit STMicroelectronics 0LED1202JR Black LED Lighting Driver Integrated Circuit STMicroelectronics 1
Manufacturer: STMicroelectronics Product Category: LED Lighting Driver
Number of channels: 12 Channel Output current: 20 mA
Input Voltage: 2.6 V to 5 V Operating frequency: 400 kHz
Supply Current—Maximum: 2 mA Minimum operating temperature: - 40 C
Maximum operating temperature: + 85 C Installation style: SMD/SMT
Package/Case: Flip-Chip-20 Number of outputs: 12 Output
Series: LED1202 Package: Reel
Package: Cut Tape Package: MouseReel
Features: I2C Control Brand: STMicroelectronics
Product: LED Drivers Factory Packing Quantity: 6000
Subcategory: Driver ICs Type: Low Quiescent Current
Unit weight: 1.570 mg Product Type: LED Lighting Drivers
