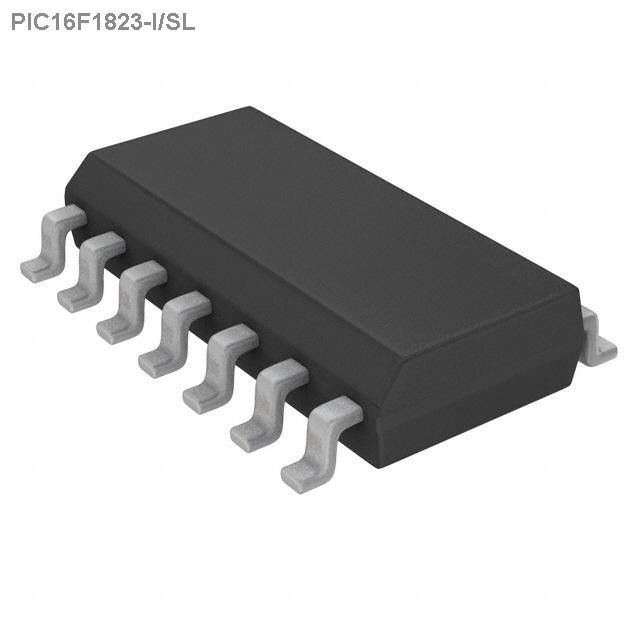

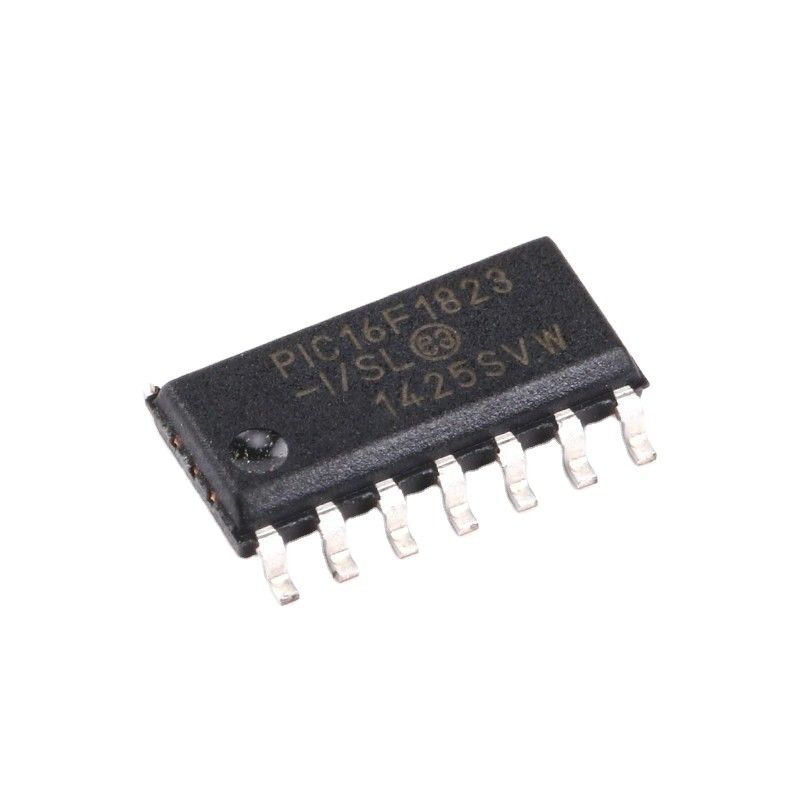

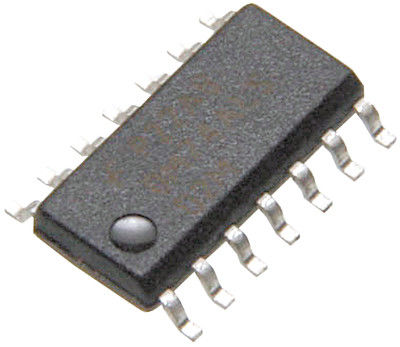

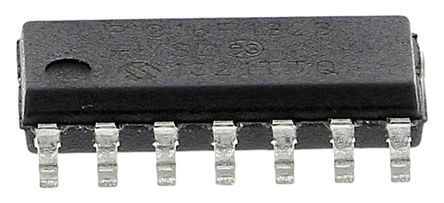

8-Bit Microcontroller MCU PIC16F1823-I/SL Black Microcontroller

8-Bit Microcontroller MCU PIC16F1823-I/SL Black Microcontroller

PIC16F1823-I/SL MCU Microcontroller Unit

Microcontroller Unit PIC16F1823-I/SL

8 Bit PIC16F1823-I/SL

Brand Name:


Contact Us

Request A Quote
Product Details
Model Number:
Oscillator Type:
1.8V ~ 5.5V
Computers & Computer Peripherals
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Package: SOIC-14
Delivery Time
5-8 work days
Payment Terms
Supply Ability
5k-10k per day
Contact Us
Product Description

High-Performance RISC CPU • Only 49 Instructions to Learn: - All single-cycle instructions except branches • Operating Speed: - DC – 32 MHz oscillator/clock input - DC – 125 ns instruction cycle • Interrupt Capability with Automatic Context Saving • 16-Level Deep Hardware Stack with Optional Overflow/Underflow Reset • Direct, Indirect and Relative Addressing modes: - Two full 16-bit File Select Registers (FSRs) - FSRs can read program and data memory Flexible Oscillator Structure • Precision 32 MHz internal Oscillator Block: - Factory calibrated to ± 1%, typical - Software selectable frequencies range of 31 kHz to 32 MHz • 31 kHz Low-Power Internal Oscillator • Four Crystal modes up to 32 MHz • Three External Clock modes up to 32 MHz • 4X Phase Lock Loop (PLL) • Fail-Safe Clock Monitor: - Allows for safe shutdown if peripheral clock stops • Two-Speed Oscillator Start-up • Reference Clock module: - Programmable clock output frequency and duty-cycle Special Microcontroller Features • Full 5.5V Operation – PIC12F1822/16F1823 • 1.8V-3.6V Operation – PIC12LF1822/16LF1823 • Self-Reprogrammable under Software Control • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Programmable Brown-out Reset (BOR) • Extended Watchdog Timer (WDT) • In-Circuit Serial Programming™ (ICSP™) via Two Pins • In-Circuit Debug (ICD) via Two Pins • Enhanced Low-Voltage Programming (LVP) • Operating Voltage Range: - 1.8V-5.5V (PIC12F1822/16F1823) - 1.8V-3.6V (PIC12LF1822/16LF1823) • Programmable Code Protection • Self-Programmable under Software Control Extreme Low-Power Management PIC12LF1822/16LF1823 with XLP • Sleep mode: 20 nA @ 1.8V, typical • Watchdog Timer: 300 nA @ 1.8V, typical • Timer1 Oscillator: 650 nA @ 32 kHz, typical • Operating Current: 30 µA/MHz @ 1.8V, typical Analog Features • Analog-to-Digital Converter (ADC) module: - 10-bit resolution, up to 8 channels - Conversion available during Sleep • Analog Comparator module: - Up to two rail-to-rail analog comparators - Power mode control - Software controllable hysteresis • Voltage Reference module: - Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels - 5-bit rail-to-rail resistive DAC with positive and negative reference selection Peripheral Highlights • Up to 11 I/O Pins and 1 Input-Only Pin: - High current sink/source 25 mA/25 mA - Programmable weak pull-ups - Programmable interrupt-on-change pins • Timer0: 8-Bit Timer/Counter with 8-Bit Prescaler • Enhanced Timer1: - 16-bit timer/counter with prescaler - External Gate Input mode - Dedicated, low-power 32 kHz oscillator driver • Timer2: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler • Enhanced CCP (ECCP) modules: - Software selectable time bases - Auto-shutdown and auto-restart - PWM steering • Master Synchronous Serial Port (MSSP) with SPI and I2CTM with: - 7-bit address masking - SMBus/PMBusTM compatibility • Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module: - RS-232, RS-485 and LIN compatible - Auto-Baud Detect • Capacitive Sensing (CPS) module (mTouch™): - Up to 8 input channels

Product name:PIC16F1823-I/SL 8-Bit Microcontroller MCU PIC16F1823-I/SL Black Microcontroller 0
Manufacturer: Microchip Product Category: 8-bit Microcontroller -MCU
Family: PIC16(L)F182x Installation style: SMD/SMT
Package/Case: SOIC-14 Core: PIC16
Program memory size: 3.5 kB Data bus width: 8 bit
ADC resolution: 10 bit Maximum clock frequency: 32 MHz
Number of inputs/outputs: 12 I/O Operating Supply Voltage: 1.8 V to 5.5 V
Minimum operating temperature: - 40 C Maximum operating temperature: + 85 C
Package: Tube Brand: Microchip Technology
Data Ram Type: RAM Height: 1.25 mm
Interface Type: I2C, SPI, USART Length: 8.65 mm
Moisture Sensitivity: Yes Number of ADC channels: 8 Channel
Number of timers/counters: 3 Timer Processor Family: PIC16
Product Type: 8-bit Microcontrollers - MCU Brand Name: PIC
Width: 3.9 mm Unit weight: 338 mg
