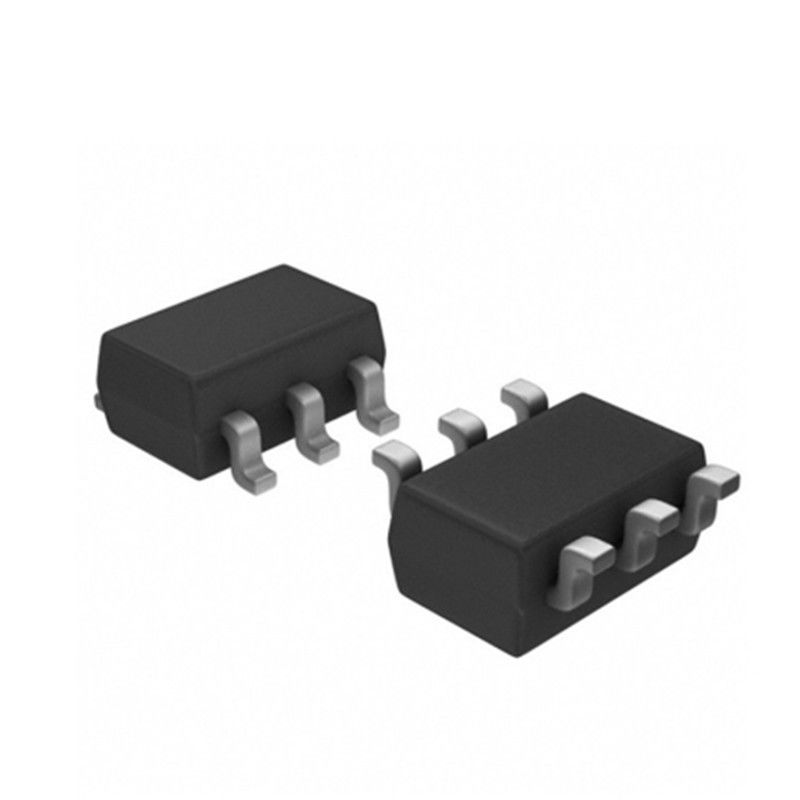

Original MCP6002T-I/SN MCP6002T-I/MS MCP16301T-I/CHY IC REG BUCK ADJ 600MA SOT23-6

Original MCP6002T-I/SN MCP6002T-I/MS MCP16301T-I/CHY IC REG BUCK ADJ 600MA SOT23-6

MCP6002T-I/MS 2 Channel

Integrated Circuit Microchip MCP6002T-I/MS

Brand Name:

MICROCHIP

Model Number:

MCP6002T-I/MS

Contact Us

Request A Quote
Product Details
Model Numbe:
MCP6002T-I/MS
Type:
Integrated Circuit
D/C:
New
Package:
SOT-23
Payment & Shipping Terms
Minimum Order Quantity
1000
Packaging Details
Package: SOT-23
Delivery Time
5-8 work days
Payment Terms
T/T
Supply Ability
5k-10k per day
RELATED PRODUCTS
Contact Us
Product Description

Features

• Available in 5-Lead SC-70 and 5-Lead SOT-23 Packages

• Gain Bandwidth Product: 1 MHz (typical)

• Rail-to-Rail Input/Output

• Supply Voltage: 1.8V to 6.0V

• Supply Current: IQ = 100 µA (typical)

• Phase Margin: 90° (typical)

• Temperature Range: - Industrial: -40°C to +85°C - Extended: -40°C to +125°C

• Available in Single, Dual and Quad Packages Applications

• Automotive

• Portable Equipment

• Photodiode Amplifier

• Analog Filters

• Notebooks and PDAs

• Battery-Powered Systems Design Aids

• SPICE Macro Models

• FilterLab® Software

• Mindi™ Circuit Designer and Analog Simulator

• Microchip Advanced Part Selector (MAPS)

• Analog Demonstration and Evaluation Boards

• Application Notes

Description The Microchip Technology Inc. MCP6001/2/4 family of operational amplifiers (op amps) is specifically designed for general purpose applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typical). It also maintains a 45° phase margin (typical) with a 500 pF capacitive load. This family operates from a single-supply voltage as low as 1.8V, while drawing 100 µA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a Common-mode input voltage range of VDD + 300 mV to VSS – 300 mV. This family of op amps is designed with Microchip’s advanced CMOS process. The MCP6001/2/4 family is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 6.0V.

Product name:MCP6002T-I/MS Original MCP6002T-I/SN MCP6002T-I/MS MCP16301T-I/CHY IC REG BUCK ADJ 600MA SOT23-6 0
Manufacturer: Microchip Product Category: Operational Amplifiers - Operational Amplifiers

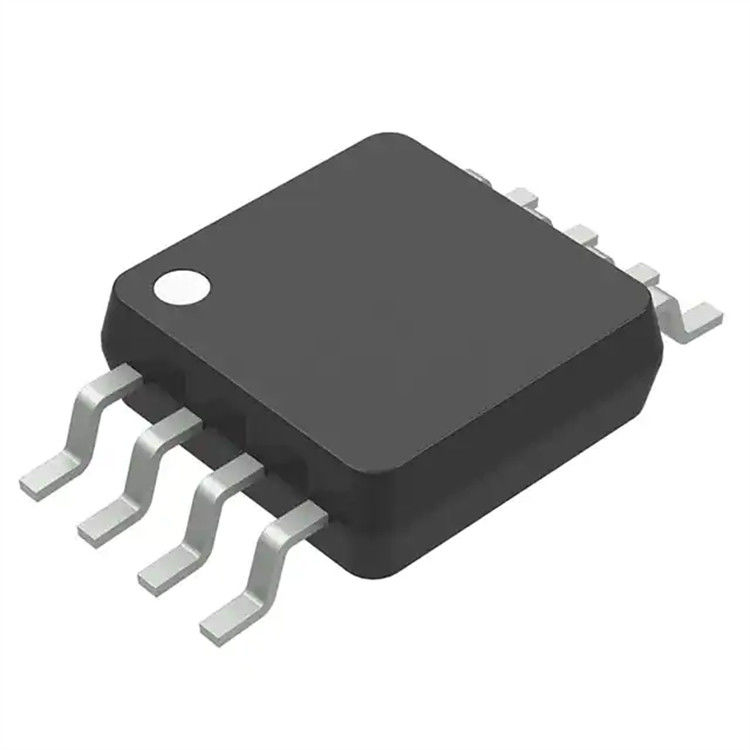

Installation style: SMD/SMT Package/Case: MSOP-8
Number of channels: 2 Channel Supply Voltage - Maximum: 5.5 V
GBP-Gain Bandwidth Product: 1 MHz Output current per channel: 23 mA
SR - Slew Rate : 600 mV/us Vos - Input Bias Voltage : 4.5 mV
Supply Voltage - Min: 1.8 V Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C Ib - Input Bias Current: 1 pA
Operating supply current: 100 uA CMRR - Common Mode Rejection Ratio: 60 dB
Qualification: AEC-Q100 Amplifier Type: Low Power Amplifier
Unit weight: 140 mg Power Type: Single
Width: 3 mm
Unit weight: 140 mg
Factory Packing Quantity: 2500
