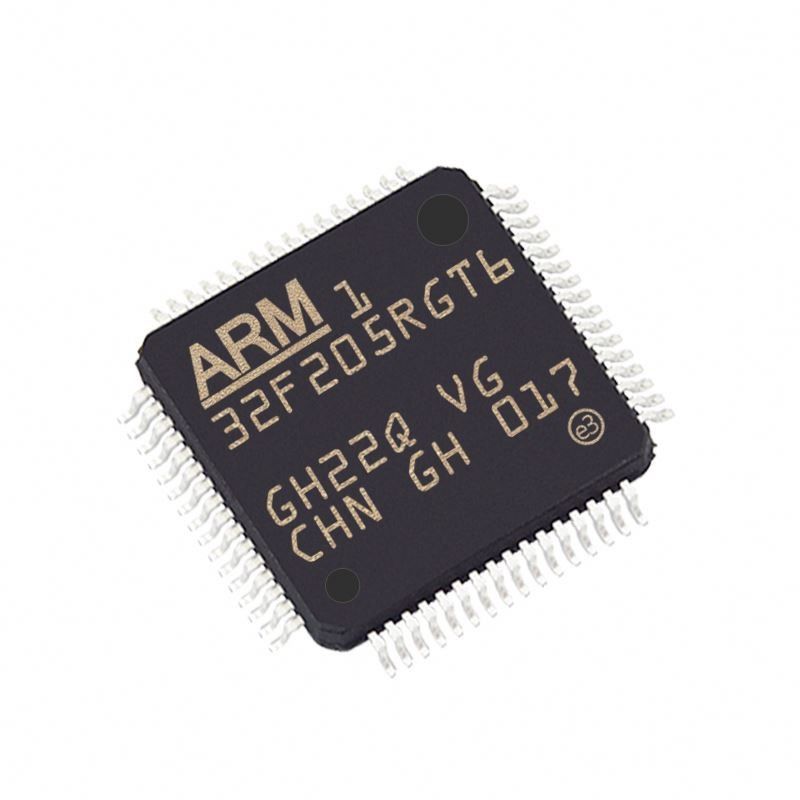

STM32F205RGT6 Electronic Component Chip Module IC 32-Bit Microcontroller Package LQFP64

STM32F205RGT6 Electronic Component Chip Module IC 32-Bit Microcontroller Package LQFP64

STM32F205RGT6 integrated circuit components

Electronic Component Chip STM32F205RGT6

ARM Cortex M3 STM32F205RGT6

Brand Name:

ST

Contact Us

Request A Quote
Product Details
Model Number:
STM32F205RGT6
Type:
Microcontroller
D/C:
New
Payment & Shipping Terms
Minimum Order Quantity
1000
Packaging Details
Package: LQFP64
Delivery Time
5-8 work days
Payment Terms
T/T
Supply Ability
5k-10k per day
RELATED PRODUCTS
Contact Us
Product Description

Features



 Core: Arm® 32-bit Cortex®-M3 CPU (120 MHz max) with Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution performance from Flash memory, MPU, 150 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)

 Memories – Up to 1 Mbyte of Flash memory – 512 bytes of OTP memory – Up to 128 + 4 Kbytes of SRAM – Flexible static memory controller that supports Compact Flash, SRAM, PSRAM, NOR and NAND memories – LCD parallel interface, 8080/6800 modes

 Clock, reset and supply management – From 1.8 to 3.6 V application supply + I/Os – POR, PDR, PVD and BOR – 4 to 26 MHz crystal oscillator – Internal 16 MHz factory-trimmed RC – 32 kHz oscillator for RTC with calibration – Internal 32 kHz RC with calibration  Low-power modes – Sleep, Stop and Standby modes – VBAT supply for RTC, 20 × 32 bit backup registers, and optional 4 Kbytes backup SRAM

 3 × 12-bit, 0.5 µs ADCs with up to 24 channels and up to 6 MSPS in triple interleaved mode

 2 × 12-bit D/A converters

 General-purpose DMA: 16-stream controller with centralized FIFOs and burst support

 Up to 17 timers – Up to twelve 16-bit and two 32-bit timers, up to 120 MHz, each with up to four IC/OC/PWM or pulse counter and quadrature (incremental) encoder input

 Debug mode: Serial wire debug (SWD), JTAG, and Cortex®-M3 Embedded Trace Macrocell™ Up to 140 I/O ports with interrupt capability: – Up to 136 fast I/Os up to 60 MHz – Up to 138 5 V-tolerant I/Os  Up to 15 communication interfaces – Up to three I2C interfaces (SMBus/PMBus) – Up to four USARTs and two UARTs (7.5 Mbit/s, ISO 7816 interface, LIN, IrDA, modem control) – Up to three SPIs (30 Mbit/s), two with muxed I2S to achieve audio class accuracy via audio PLL or external PLL – 2 × CAN interfaces (2.0B Active) – SDIO interface

 Advanced connectivity – USB 2.0 full-speed device/host/OTG controller with on-chip PHY – USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, on-chip full-speed PHY and ULPI – 10/100 Ethernet MAC with dedicated DMA: supports IEEE 1588v2 hardware, MII/RMII

 8- to 14-bit parallel camera interface (48 Mbyte/s max.)

 CRC calculation unit  96-bit unique ID

Product name:STM32F205RGT6 STM32F205RGT6 Electronic Component Chip Module IC 32-Bit Microcontroller Package LQFP64 0
Manufacturer: STMicroelectronics Product category: ARM microcontroller-MCU Series: STM32F205RG
Style: SMD/SMT Series: STM32F205RG
Package/box: LQFP-64 Core: ARM Cortex M3
Program memory size: 1 MB Bus width: 32bit
Maximum clock frequency: 120mhz Number of input/output terminals: 51 I/O
RAM size: 128 kB Operating power supply voltage: 1.8 V to 3.6 V
Minimum operating temperature: - 40 C Maximum operating temperature: + 85 C
Package: Tray Trademark: STMicroelectronics
Type of Ram: SRAM Data ROM size: 512b
Type of interface: 2xcan, 2xuart, 3x2c, 3xspi, 4xusart, sdio Sensitivity: Yes
Number of timers/counters: 10 Timer Series: ARM Cortex M
Type of product: ARM Microcontrollers-MCU Memory type: Flash
Factory packing quantity: 960 Subcategory: Microcontrollers-MCU
Trademark: STM32 Unit weight: 342.700mg
