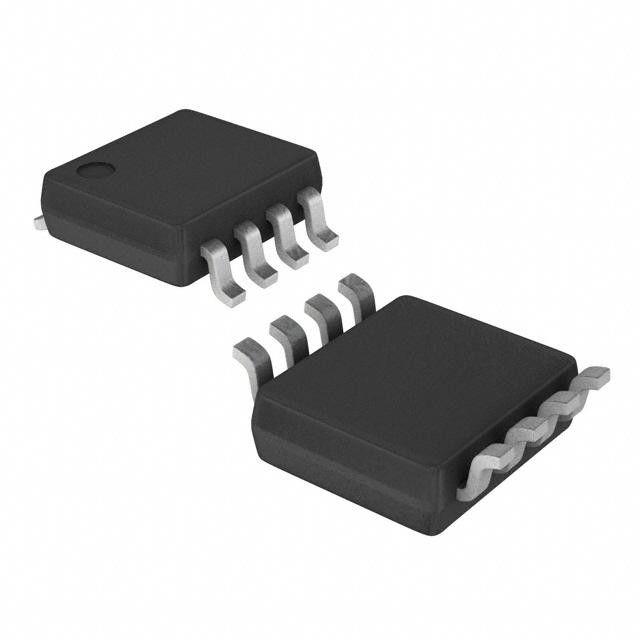

Brand New ADC122S051CIMM/NOPB Analog To Digital Converters - ADC

Brand New ADC122S051CIMM/NOPB Analog To Digital Converters - ADC

ADC122S051CIMM/NOPB ic chips

2 Channel Electronic Integrated Circuits

Brand Name:


Contact Us

Request A Quote
Product Details
Model Number:
Integrated Circuit
Cut Tape
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Package: Reel Package: Cut Tape Package: MouseReel
Delivery Time
5-8 work days
Payment Terms
Supply Ability
5k-10k per day
Contact Us
Product Description

1FEATURES DESCRIPTION The ADC122S051/ADC122S051Q is a low-power, 2• Specified Over a Range of Sample Rates. two-channel CMOS 12-bit analog-to-digital converter • Two Input Channels with a high-speed serial interface. Unlike the • Variable Power Management conventional practice of specifying performance at a • Single Power Supply with 2.7V - 5.25V Range single sample rate only, the ADC122S051/ADC122S051Q is fully specified over a • Tested per AEC-Q100 and Qualified for sample rate range of 200 ksps to 500 ksps. The Automotive Applications converter is based on a successive-approximation • Meets AEC-Q100-011 C2 CDM Classification register architecture with an internal track-and-hold circuit. It can be configured to accept one or two input APPLICATIONS signals at inputs IN1 and IN2. • Portable Systems The output serial data is straight binary, and is compatible with several standards, such as SPI™, • Remote Data Acquisition QSPI™, MICROWIRE, and many common DSP • Instrumentation and Control Systems serial interfaces. KEY SPECIFICATIONS The ADC122S051/ADC122S051Q operates with a single supply that can range from +2.7V to +5.25V. • DNL: +0.7 / −0.4 LSB (typ) Normal power consumption using a +3V or +5V • INL: ± 0.50 LSB (typ) supply is 3.0 mW and 10 mW, respectively. The power-down feature reduces the power consumption • SNR: 72.5 dB (typ) to just 0.14 µW using a +3V supply, or 0.32 µW using • Power Consumption: a +5V supply. – 3V Supply: 3.0 mW (typ) The ADC122S051/ADC122S051Q is packaged in an – 5V Supply: 10 mW (typ) 8-lead VSSOP package. Operation over the industrial temperature range of −40°C to +85°C is specified.

Product name:ADC122S051CIMM/NOPB Brand New ADC122S051CIMM/NOPB  Analog To Digital Converters - ADC 0
Manufacturer: Texas Instruments Product Category: Analog to Digital Converters - ADC
Series: ADC122S051 Installation style: SMD/SMT
Package/Case: VSSOP-8 Resolution: 12 bit
Number of channels: 2 Channel Interface type: SPI
Sampling ratio: 500 kS/s Input Type: Differential
Structure: SAR Analog Supply Voltage: 2.7 V to 5.25 V
Digital Supply Voltage: 2.7 V to 5.25 V SNR – Signal to Noise Ratio: 72.5 dB
Minimum operating temperature: - 40 C Maximum operating temperature: + 85 C
Package: Reel
Package: Cut Tape
Package: MouseReel
Length: 3 mm
Number of ADC inputs: 2 Input Number of Converters: 1 Converter
Operating supply voltage: 3.3 V, 5 V Power consumption: 3 mW
Product Type: ADCs - Analog to Digital Converters Reference Type: Supply
Sample and Hold: Yes Factory Packing Quantity: 1000
Width: 3 mm Unit weight: 140 mg
