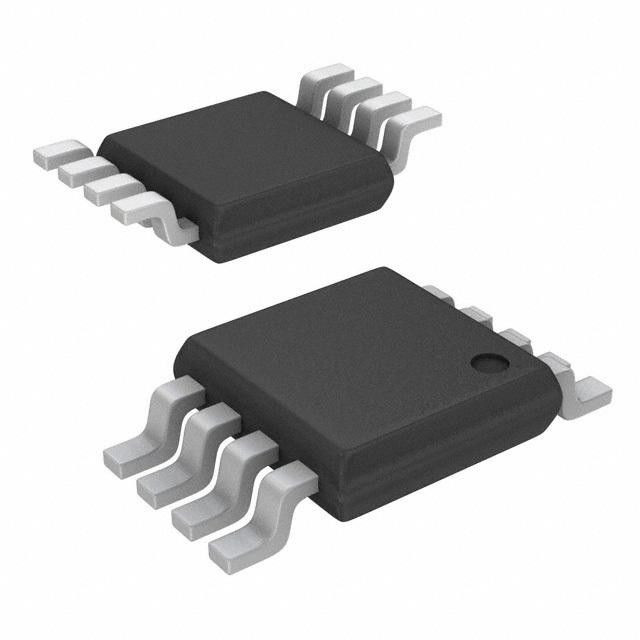

Integrated Circuit Chip AZV832MMTR-G1 8-TSSOP Micro Control Chip

General Description The AZV831/AZV832 is single/dual channels rail-to-rail input and output amplifier, which provides a wide input common-mode voltage range and output voltage swing capability for maximum signal swings in low supply voltage applications. The device is fully specified to operate from 1.6V to 5.0V single supply, or ±0.8V and ±2.5V dual supply applications. It features very low supply current dissipation 70µA per channel, which is well suitable for today's low-voltage and/or portable systems. The AZV831/AZV832 features optimal performance in very low bias current of 1pA, which enables the IC to be used for integrators, photodiode amplifiers, and piezoelectric sensors etc. The device has typical 0.5mV input offset voltage and provides 1MHz bandwidth. The AZV831/AZV832 adopts the latest packaging technology to meet the most demanding space-constraint applications. The AZV831 is available in standard SOT-23-5 and SC-70-5 packages. The AZV832 is offered in the traditional MSOP-8 and SOIC-8 packages.

Features

• Single Supply Voltage Range: 1.6V to 5.5V

• Ultra-low Input Bias Current: 1pA (Typ.)

• Offset Voltage: 0.5mV (Typ.), 2.5mV (Max.)

• Rail-to-Rail Input VCM: 300mV beyond Rails @ VCC=5V Rail-to-Rail Output Swing: 10kΩ Load: 4mV from Rail 1kΩ Load: 25mV from Rail

• Supply Current: 70µA/Amplifier • Unity Gain Stable Gain Bandwidth Product: 1.0MHz

• Slew Rate: 0.45V/µs @ VCC=5.0V

• Operation Ambient Temperature Range: -40ºC to 85ºC

Applications

• Sensors

• Photodiode Amplification

• Battery-Powered Instrumentation

• Pulse Blood Oximeter, Glucose Meter.

Product name:AZV832MMTR-G1
Manufacturer: Diodes Incorporated	Product Category: Operational Amplifiers - Operational Amplifiers
Installation style: SMD/SMT	Number of channels: 2 Channel
Supply Voltage - Maximum: 5.5 V	GBP-Gain Bandwidth Product: 1 MHz
Output current per channel: 150 mA	SR - Slew Rate : 450 mV/us
Vos - Input Bias Voltage : 500 uV	Supply Voltage - Min: 1.6 V
Minimum operating temperature: - 40 C	Maximum operating temperature: + 85 C
Ib - Input Bias Current: 1 pA	Operating Supply Current: 70 uA
Shutdown: No Shutdown	CMRR - Common Mode Rejection Ratio: 90 dB
en - Input Voltage Noise Density: 27 nV/sqrt Hz	Series: AZV832
Package: Reel Package: Cut Tape Package: MouseReel	Amplifier Type: General Purpose Amplifier
Trademark: Diodes Incorporated	Input Type: Rail-to-Rail
Ios - Input Bias Current : 1 pA	Moisture Sensitivity: Yes
Product Type: Op Amps - Operational Amplifiers	Factory Packing Quantity: 3000
Vcm - Common Mode Voltage: - 0.3 V to + 5.3 V	Unit weight: 283 mg

.
