CD40106BM96 Electronic Components Integrated Circuits CLHD Professional Original Brand

CD40106BM96 Electronic Components Integrated Circuits CLHD Professional Original Brand

Microcontroller Unit CD40106BM96

Electronic Integrated Circuits CD40106BM96

Brand Name:


Contact Us

Request A Quote
Product Details
Model Number:
Integrated Circuit
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Package: standard
Delivery Time
5-8 work days
Payment Terms
Supply Ability
5k-10k per day
Contact Us
Product Description

1 Features 1• Schmitt-Trigger Inputs • Hysteresis Voltage (Typical): – 0.9 V at VDD = 5 V – 2.3 V at VDD = 10 V – 3.5 V at VDD = 15 V • Noise Immunity Greater Than 50% • No Limit On Input Rise and Fall Times • Standardized, Symmetrical Output Characteristics • For Quiescent Current at 20 V • Maximum Input Current Of 1 µA at 18 V Over Full Package Temperature Range: – 100 nA at 18 V and 25°C • Low VDD and VSS Current During Slow Input Ramp • 5-V, 10-V, and 15-V Parametric Ratings.

2 Applications • Wave and Pulse Shapers • High-Noise-Environment Systems • Monostable Multivibrators • Astable Multivibrators

3 Description The CD40106B device consists of six Schmitt-Trigger inputs. Each circuit functions as an inverter with Schmitt-Trigger input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltages (VN) is defined as hysteresis voltage (VH). The CD40106B device is supplied in ceramic packaging (J) as well as standard packaging (D, N, NS, PW). All CD40106B devices are rated for –55°C to +125°C ambient temperature operation.

Feature Description The CD40106B has standardized symmetrical output characteristics and a wide operating voltage from 3 V to 18 V with quiescent current of 20 µA tested at 20 V. These devices have transition times of tTLH = tTHL = 50 ns (typical) at 10 V. The operating temperature is from –55°C to +125°C. Schmitt trigger inputs on this device support slow or noisy input signals.

Application Information The CD40106B device is a Schmitt-Trigger input device that can be used for a multitude of inverting buffer type functions. The application shown here takes advantage of the Schmitt-Trigger inputs to produce a square wave output from a sine wave input.

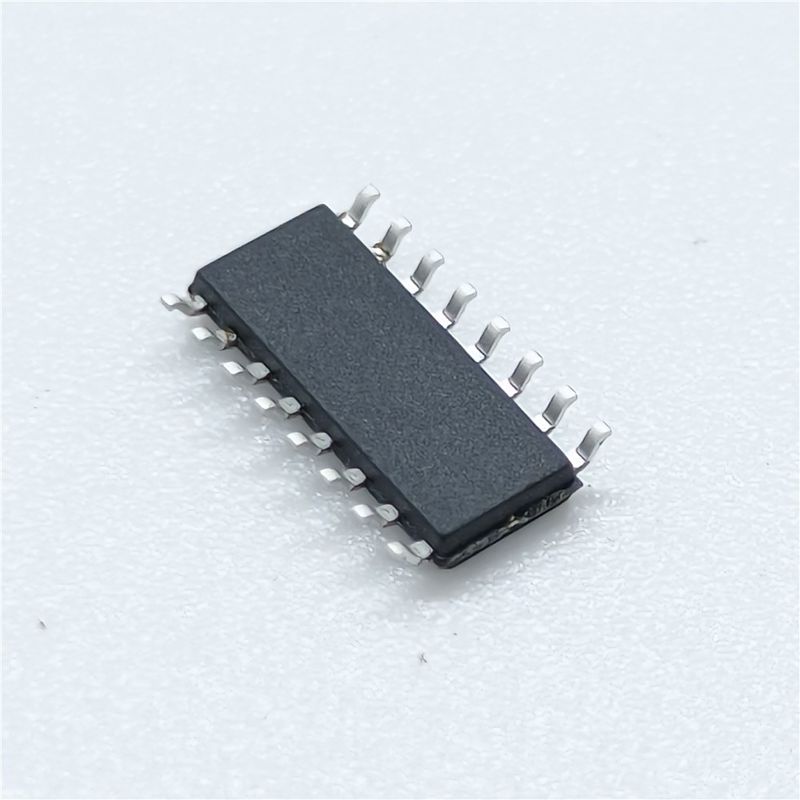

Product name:CD40106BM96 CD40106BM96 Electronic Components Integrated Circuits CLHD Professional Original Brand 0CD40106BM96 Electronic Components Integrated Circuits CLHD Professional Original Brand 1
Manufacturer: Texas Instruments Product Category: Inverter
Number of circuits: 6 Circuit Logic Series: CD4000
Logic Type: CMOS Supply Voltage - Maximum: 18 V
Supply Voltage - Min: 3 V Minimum operating temperature: - 55 C
Installation style: SMD/SMT Maximum operating temperature: + 125 C
Package/Case: SOIC-14 Package: Reel Package: Cut Tape Package: MouseReel Trademark: Texas Instruments
Function: Inverter Schmitt Trigger High level output current: - 1 mA
Input Type: Schmitt Trigger Low level output current: 1 mA
Number of output lines: 6 Output Operating supply voltage: 5 V
Operating temperature range: - 55 C to + 125 C Output Type: CMOS
Factory Packing Quantity: 2500 Unit weight: 260 mg
