Full Duplex MAX3232CD RS-232 Interface IC Transceiver

Full Duplex MAX3232CD RS-232 Interface IC Transceiver

MAX3232CD integrated circuit chip

Interface IC MAX3232CD

RS-232 Interface IC

Brand Name:


Contact Us

Request A Quote
Product Details
Model Number:
Integrated Circuit
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details

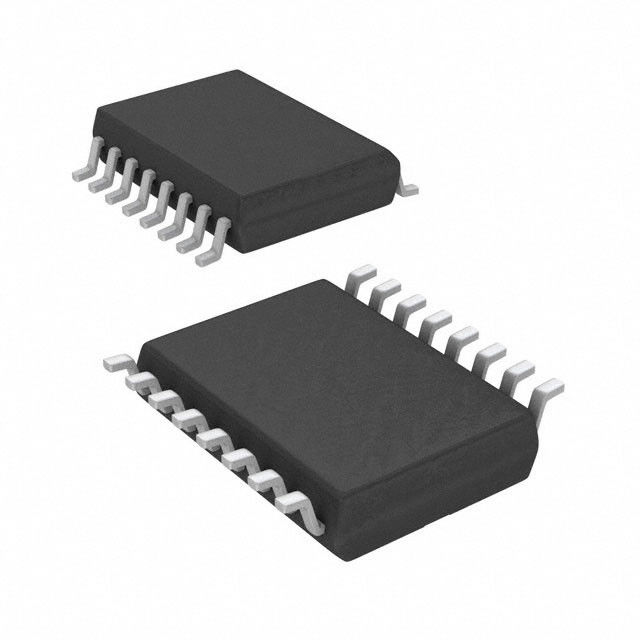

Package / Case: SOIC-Narrow-16
Delivery Time
5-8 work days
Payment Terms
Supply Ability
5k-10k per day
Contact Us
Product Description

1 Features
• RS-232 Bus-terminal esd protection exceeds ±15 kV using human-body model (HBM)
• Meets or exceeds the requirements of TIA/ EIA-232-F and ITU V.28 standards
• Operates with 3-V to 5.5-V VCC supply
• Operates up to 250 kbit/s
• Two drivers and two receivers • Low supply current: 300 μA Typical
• External capacitors: 4 × 0.1 μF
• Accepts 5-V logic input with 3.3-V supply
• Alternative high-speed terminal-compatible devices (1 Mbit/s) – SN65C3232 (–40°C to 85°C) – SN75C3232 (0°C to 70°C)
2 Applications
• Industrial PCs
• Wired networking
• Data center and enterprise networking
• Battery-powered systems
• PDAs
• Notebooks
• Laptops
• Palmtop PCs
• Hand-held equipment
3 Description
The MAX3232 device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection terminal to terminal (serial-port connection terminals, including GND). The device meets the requirements of TIA/EIA-232- F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
 Feature Description Power The power block increases, inverts, and regulates voltage at V+ and V- pins using a charge pump that requires four external capacitors. RS232 Driver Two drivers interface standard logic level to RS232 levels. Both DIN inputs must be valid high or low. RS232 Receiver Two receivers interface RS232 levels to standard logic levels. An open input will result in a high output on ROUT. Each RIN input includes an internal standard RS232 load.
Application Information For proper operation, add capacitors as shown in Typical Operating Circuit and Capacitor Values. Standard Application ROUT and DIN connect to UART or general purpose logic lines. RIN and DOUT lines connect to a RS232 connector or cable.
Device and Documentation Support Receiving Notification of Documentation Updates To receive notification of documentation updates, navigate to the device product folder on Click on Subscribe to updates to register and receive a weekly digest of any product information that has changed. For change details, review the revision history included in any revised document. Support Resources TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight from the experts. Search existing answers or ask your own question to get the quick design help you need. Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of Use. Trademarks TI E2E™ is a trademark of Texas Instruments. All trademarks are the property of their respective owners. Electrostatic Discharge Caution This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

Product name:MAX3232CDFull Duplex MAX3232CD RS-232 Interface IC Transceiver 0
Manufacturer: Texas InstrumentsProduct Category: RS-232 Interface IC
Installation style: SMD/SMTPackage / Case: SOIC-Narrow-16
Series: MAX3232Function: Transceiver
Data rate: 250 kb/sNumber of Exciters: 2 Driver
Number of receivers: 2 ReceiverDuplex: Full Duplex
Operating supply voltage: 3.3 V, 5 V
Operating supply current: 1 mAMinimum operating temperature: - 40 C
Maximum operating temperature: + 85 CESD Protection: 15kV
Package: TubeProduct Type: RS-232 Interface IC
Factory Packing Quantity: 320Power Type: Single Supply
Supply Voltage - Maximum: 5.5 VSupply Voltage - Min: 3 V
